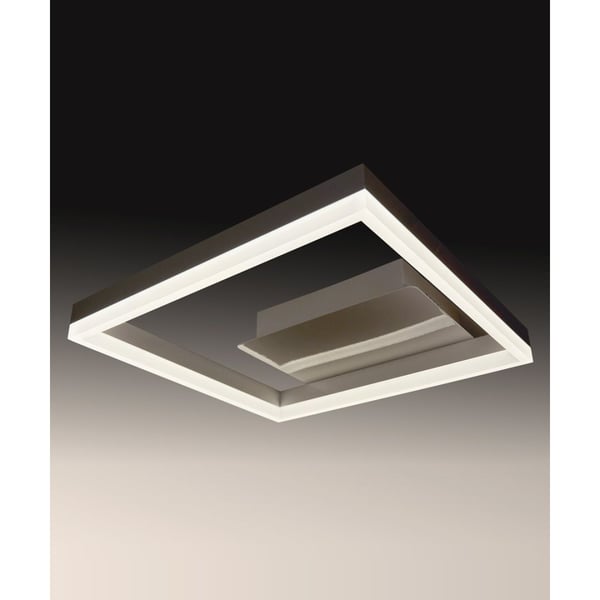

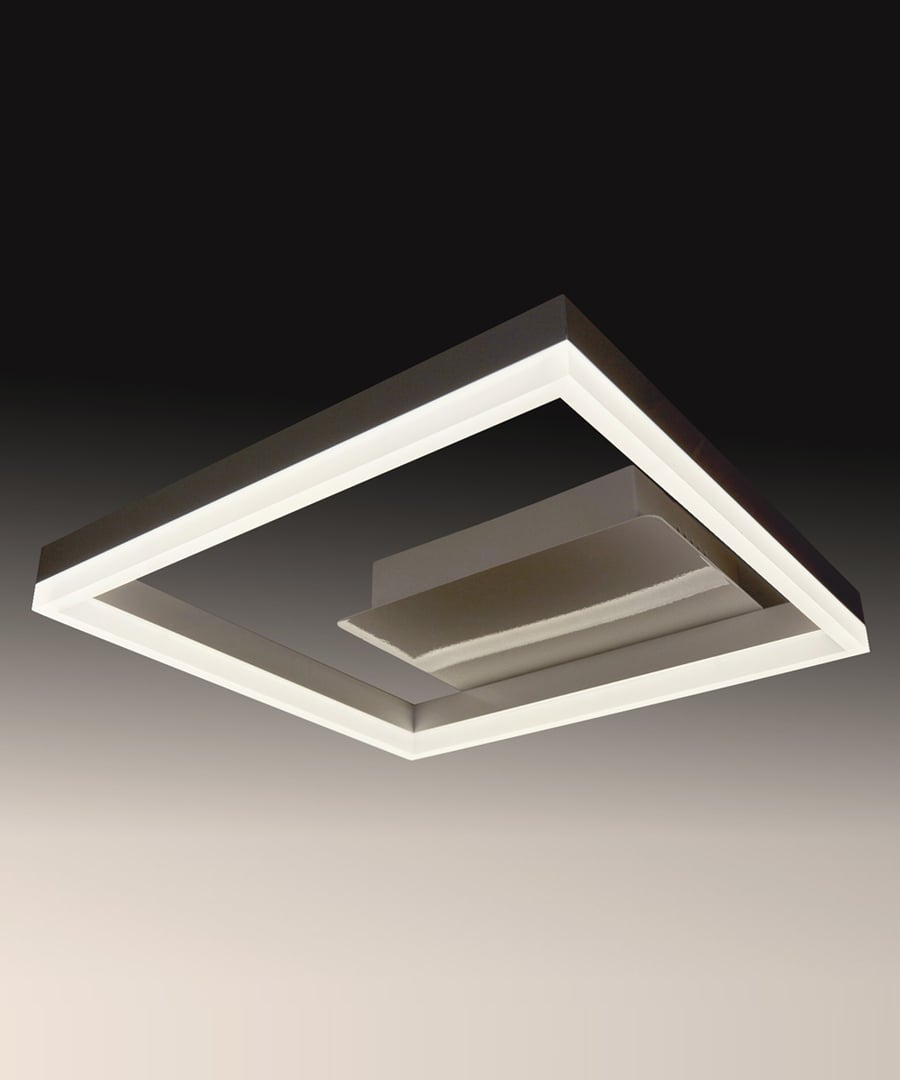

Alcon Lighting 12278-1 Square Architectural LED 1 Tier Square Surface Mount
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
The specification grade decorative Architectural LED Square Light delivers continuous clean lines and clear light to commercial, hospitality and residential interior lighting applications. Our modern, slim and stylish light designs offer excellent direct lighting, exceptional performance and versatility in offices, classrooms, conference rooms, museums, retail outlets, hotels, restaurants, and more. The surface mount square light is available in several finishes.
Features:
Size: 14.5" x 14.5"
Wattage: 20 Watts
Lumens: 1800 Lumen
Construction: Seamless Aluminum Frame
Beam Angle: 120°
Lens: High Transmittance Acrylic
Voltage: 100-277V
Power Factor: ≥0.97
CRI: 80+
Dimming: 0-10V Dimmable
Life: 50,000-hour at 25˚C
Operating Temperature: -40°C to 45°C, -40°F to 122°F
Warranty: 10 Years Carefree for Parts & Components (Labor Not Included)
Listings: UL, cULus, FCC listed, RoHS compliant, Dry location.
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 12278-1 |
| Return Policy | Assembled to Order. A 25% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | UL Listed, cUL Listed |
| Finish | White, Black, Silver |
| Color Temperature | 3000K Warm White, 3500K Soft White, 4000K Cool White, 5000K Day Light, 2700K Warm White |
| Features | 0-10V Dimming |
| Mount Type | Surface |
| Shape | Round |
| Product Type | Direct Downlight |
| Lumen Output | 100-2,499 Lumens, 2,500-4,900 Lumens |
