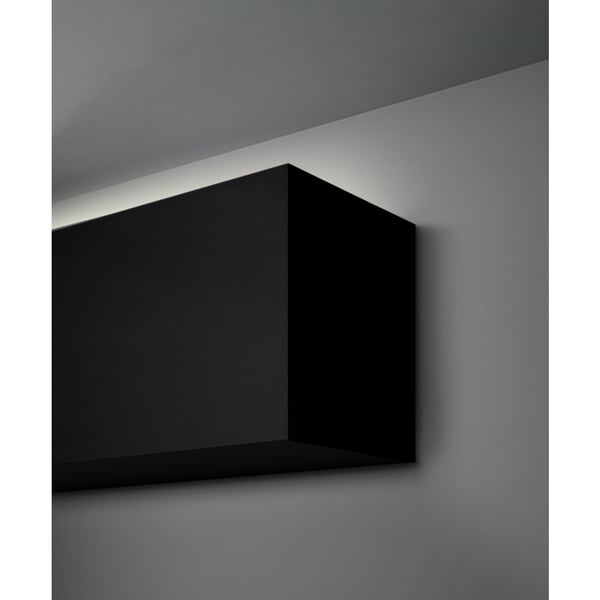

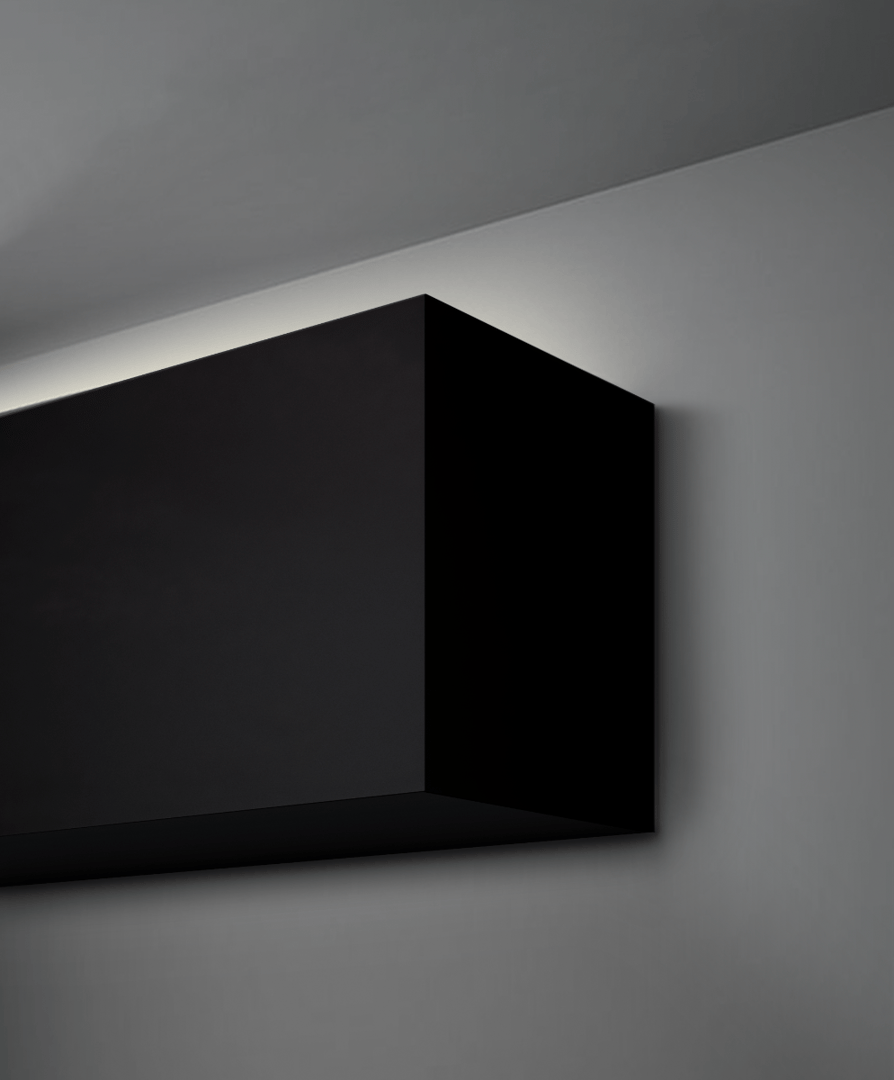

Alcon Lighting 12100-66-W-I Continuum 66 Series Architectural LED Linear Wall Mount Indirect Uplight Fixture
NOTE: given the nature of built-to-order products, we cannot guarantee lead-times. Occasional back-order of components (i.e. LED drivers, diodes, and/or other electrical components) can sometimes lead to delays in assembly. Estimated ship dates are, by definition, not guaranteed.
The specification grade Continuum 66 Architectural Wall Mount LED Linear Lighting delivers continuous clean lines and clear wall light to commercial, hospitality and residential interior wall lighting applications. Our slim profiles and stylish modern wall sconces offer excellent indirect lighting, exceptional performance and versatility in offices, classrooms, conference rooms, museums, retail outlets, hotels, restaurants, and more. The integrated LED Continuum is available in standard lengths of 4’ and 8’, and can be joined together in seamless runs of any length.
Construction: Die-Formed and Welded 22-Gauge Cold Rolled Steel
Continuous Run: Full Ability to Tandem Mount for Continuous Run Application Equipped with Male & Female Quick Connect Harnesses
Lens: Glare Free Snap In Frosted Acrylic for Even Distribution
Custom Design: Offered with Pre-Fabricated and Fully Illuminated Corners
Voltage: 120-277V
Dimming: 5-Wire 0-10V (100%-10%), 3-Wire Electronic Low Voltage (100%-1%)
CRI: 80+ / 90+
Life: 50,000 Hours
Warranty: 5 Years Carefree for Parts & Components (Labor Not Included)
Listings: Title 24 Compliant
cETL Listed for LED Component Only
Formerly #12109 Beam 66
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 12100-66-W-I |
| Return Policy | Assembled to Order. A 50% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | cETL Listed , Made in USA, Buy American Act |
| Voltage | 120V - 277V |
| Finish | White, Black, Silver, Bronze |
| Color Temperature | 2700K Residential Warm, 3000K Warm White, 3500K Soft White, 4000K Cool White, 5000K Day Light |
| CRI | 80+, 90+ |
| Lens Opacity | Frosted |
| Features | 0-10V Dimming, ELV Dimming, Emergency Battery Backup, Lutron VIVE, Daylight Sensor, Occupancy Sensor, Bluetooth Mesh |
| Mount Type | Wall |
| Shape | Linear |
| Product Type | Indirect Uplight |
| Direction | Up |
| Length | 48", 96"+ |
| Lumen Output | 2200 - 3499 Lumens, 3500 - 4999 Lumens, 5000 - 7499 Lumens, 7500 - 8999 Lumens, 9000 - 11999 Lumens |
| Lumen Output Minimum | 2400 Lumens |
| Lumen Output Max | 9600 Lumens |
| Wattage | 24 Watts - 96 Watts |
