Alcon Lighting 12100-10-S Slim Continuum 10 Series Architectural LED Linear Surface Direct Down Light Fixture
$229.95
SKU
12100-10-S
In stock
Lead Time
Built to order: 2-4 Weeks
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
Other Products You Might Like
Accessories
Product information
Details

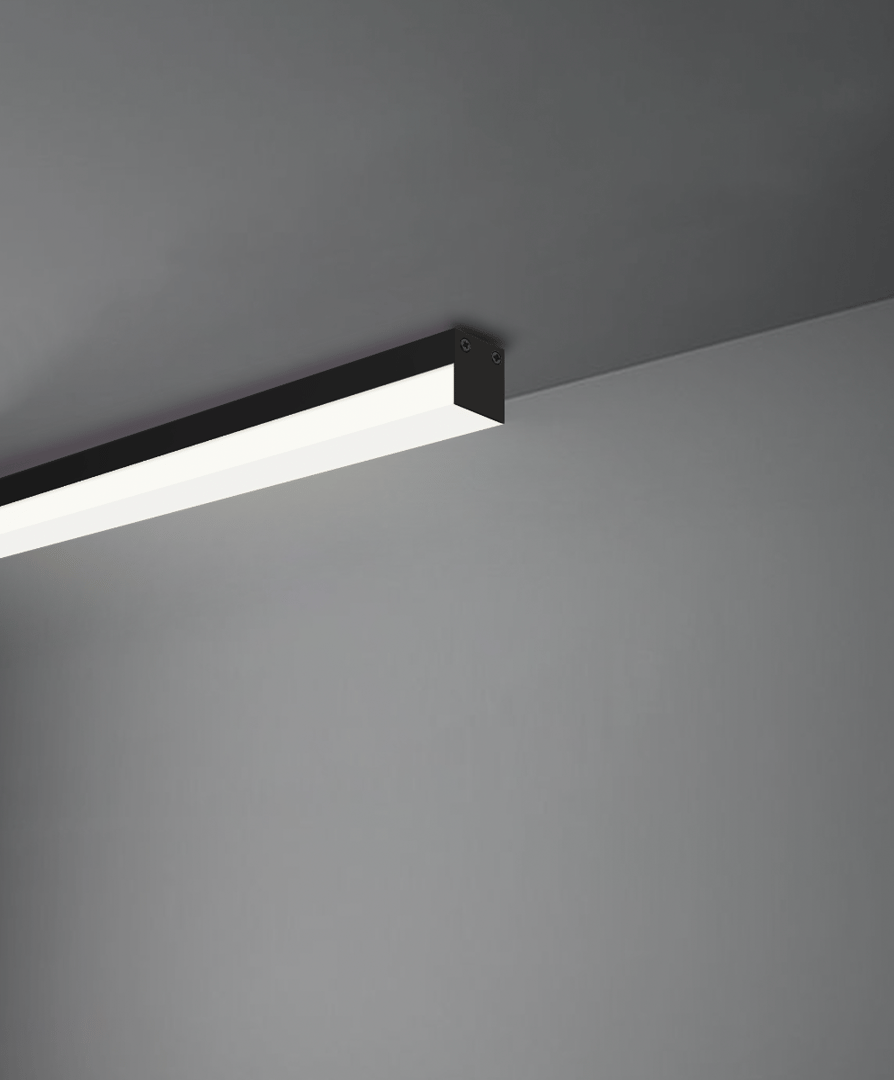

The specification grade Slim Continuum 10 Architectural LED Linear Surface Lighting delivers continuous clean lines and clear light to commercial, hospitality and residential interior flush mount lighting applications. Our modern, slim surface profiles and stylish ceiling light fixture designs offer excellent illumination, exceptional performance and versatility in offices, classrooms, conference rooms, museums, retail outlets, hotels, restaurants, and more. The integrated LED Slim Surface Continuum is available in standard lengths of 2', 3', 4’, 6', and 8’.
FEATURES
Construction: Die-Formed and Welded 22-Gauge Cold Rolled Steel
Voltage: 120-277V
Remote Dimming Driver: ELV Electronic Low Voltage (120V) 3-wire, 100-1% included.
TRIAC (120V) 2-wire and 0-10V (120-277V) 5-wire Options Available (Consult Factory).
Wattage: 7 Watts/Foot
Lumens: 700 Lumens/Watt
Lens: Glare Free Snap In Frosted Acrylic for Even Distribution
Beam Angle: 120º
Mounting: 144" 18 Gauge Adjustable Aircraft Suspension Cable with Canopy
Life: 50,000 Hours L70
Warranty: 5 Years Carefree for Parts & Components (Labor Not Included)
Listings: cUL Listed (LED and Driver Components Only) Housing is NOT cUL Listed.
Formerly Beam 12123
Remote Transformer is Provided
More Information
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 12100-10-S |
| Return Policy | Assembled to Order. Non-Refundable. |
| Technology | LED |
| Regulations | cUL, CA Title-24 , Assembled in the USA |
| Voltage | 24V |
| Color Temperature | 2700K Warm White, 3000K Warm White, 4000K Cool White, 5000K Day Light, 3500K Soft White, 2200K Warm White, 2400K Warm White, 2500K Warm White, 6000K Day Light |
| CRI | 85+, 90+ |
| Lens Opacity | Frosted |
| Mount Type | Pendant |
| Width | 3.75" |
| Length | 48", 98.5" |
| Lumen Output | 100 - 599 Lumens, 600 - 1199 Lumens |
| Lumen Output Minimum | 1480 Lumens |
| Lumen Output Max | 4000 Lumens |
| Wattage | 17.6 Watts, 24 Watts, 35.2 Watts, 48 Watts |
| Beam Spread | 120° |
