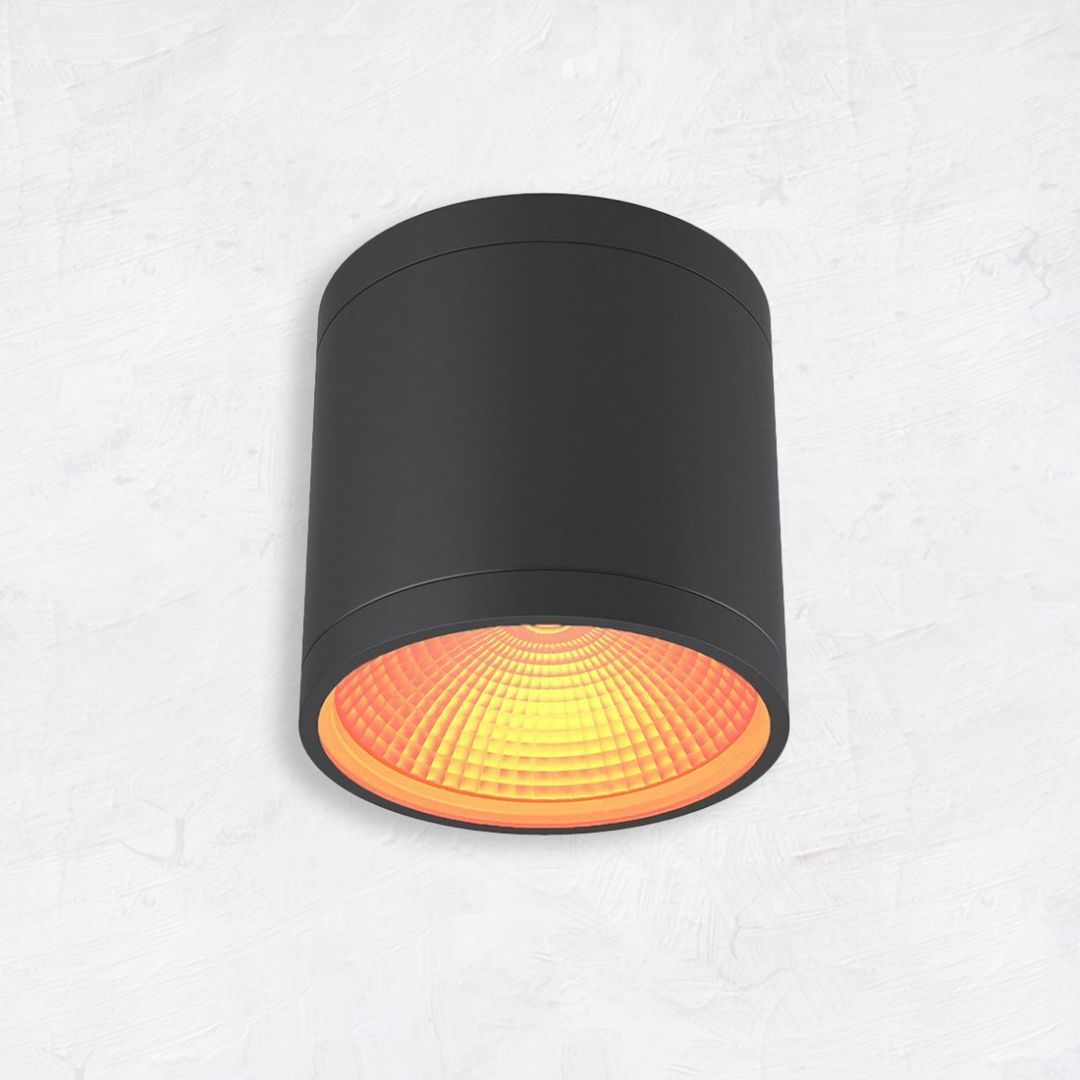

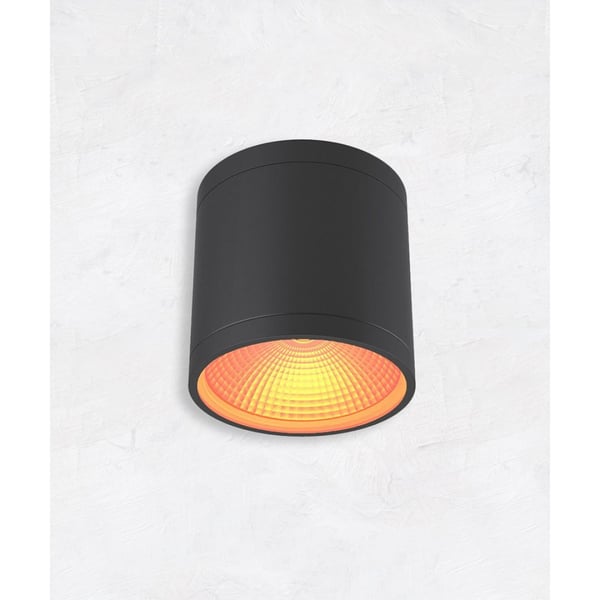

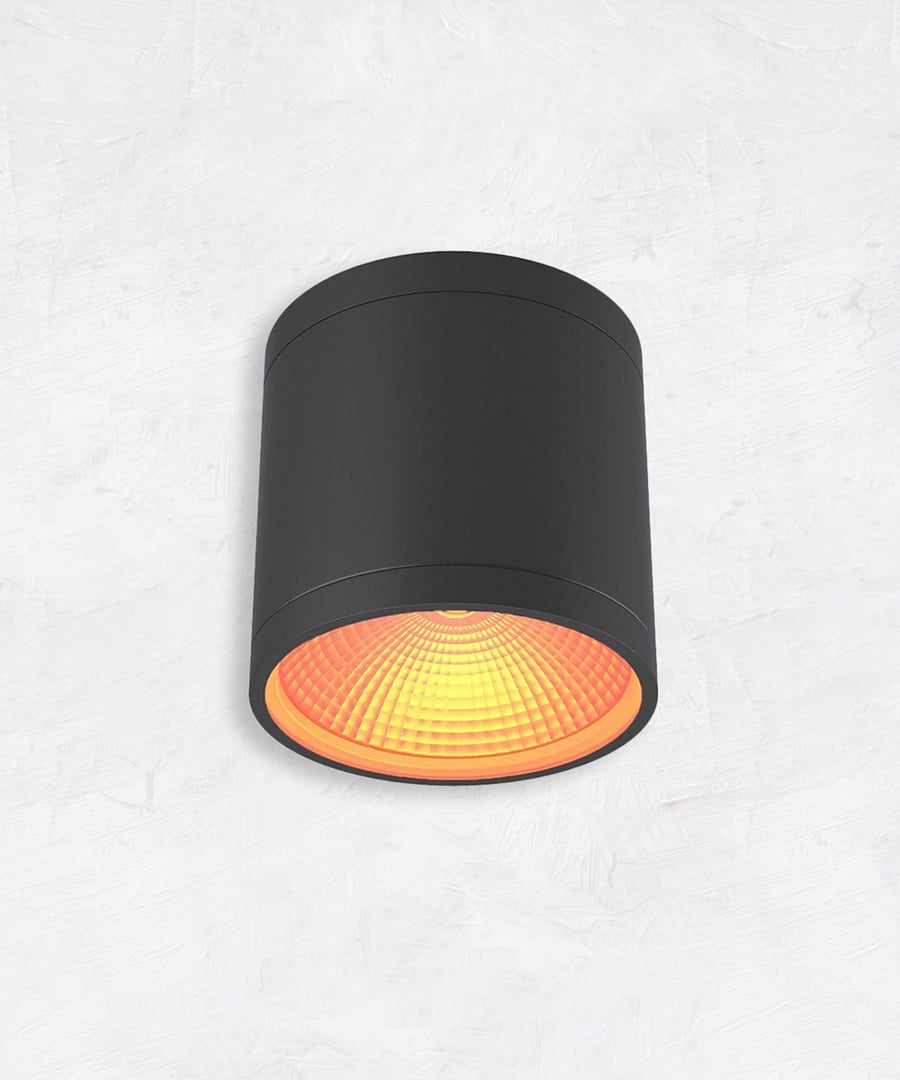

Alcon Lighting 11224-TF-R Pavo Turtle Friendly Dark Sky Architectural Amber LED 6 Inch Cylinder Surface Ceiling Mount Direct Down Light Fixture
Components In-Stock - Assembly Required
Lead Time
Built to order: 3-6 Weeks
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
SKU
11224-TF-R
$399.95
Other Products You Might Like
Details
The Pavo Turtle Friendly Architectural LED Surface Ceiling Mount Down Light is a versatile low glare lighting fixture that can be used indoor and outdoor, up or down, in commercial or retail settings. The Pavo LED Architectural Surface Mount Down Light is used to accent and create dramatic effects while providing a great source of lighting from above.
D 5.69" x H 4.75"
Construction: Round one piece high grade aluminum extrusion, die cast aluminum top plate
Tamper Resistant
Light Engine: LED Chip-On-Board
Lens: Round one piece extruded aluminum with powder coat finish, clear tempered glass, and silicone o-ring
Reflector: Glare-free, one piece, heavy gauge aluminum
Mounting: Includes bracket for installation directly to a 4" octagonal electrical junction-box
Turtle Safe Requirements:
Low: The product is designed for low to medium ceiling heights and delivered lumen output is sufficient to produce enough footcandles to satisfy building codes but not overpower the environment with excessive lumen output.
Shielded: The trim is deeply recessed and provides a minimum of 50° of glare cutoff. The trim reflector color is black to limit reflections.
The beam spread is tightly controlled.
Long: LED color is verified as 585nm minimum and 595nm maximum.
D 5.69" x H 4.75"
Construction: Round one piece high grade aluminum extrusion, die cast aluminum top plate
Tamper Resistant
Light Engine: LED Chip-On-Board
Lens: Round one piece extruded aluminum with powder coat finish, clear tempered glass, and silicone o-ring
Reflector: Glare-free, one piece, heavy gauge aluminum
Mounting: Includes bracket for installation directly to a 4" octagonal electrical junction-box
Turtle Safe Requirements:
Low: The product is designed for low to medium ceiling heights and delivered lumen output is sufficient to produce enough footcandles to satisfy building codes but not overpower the environment with excessive lumen output.
Shielded: The trim is deeply recessed and provides a minimum of 50° of glare cutoff. The trim reflector color is black to limit reflections.
The beam spread is tightly controlled.
Long: LED color is verified as 585nm minimum and 595nm maximum.
More Information
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 11224-TF-R |
| Return Policy | Assembled to Order. A 50% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | cETL Listed , cUL Listed, Assembled in the USA, IP65 Rated, LM80 Tested, Turtle Friendly |
| Voltage | 120-277V, 120V |
| Finish | White, Black, Silver, Bronze |
| Lens Opacity | Clear |
| Features | 0-10V Dimming, ELV Dimming, Triac Dimming, Emergency Backup Battery |
| Mount Type | Surface |
| Shape | Cylinder |
| Product Type | Direct Downlight |
| Wattage | 15 Watts |
