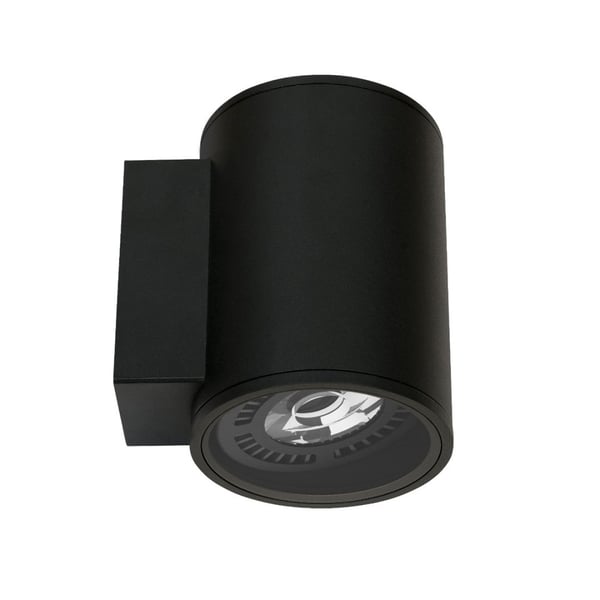

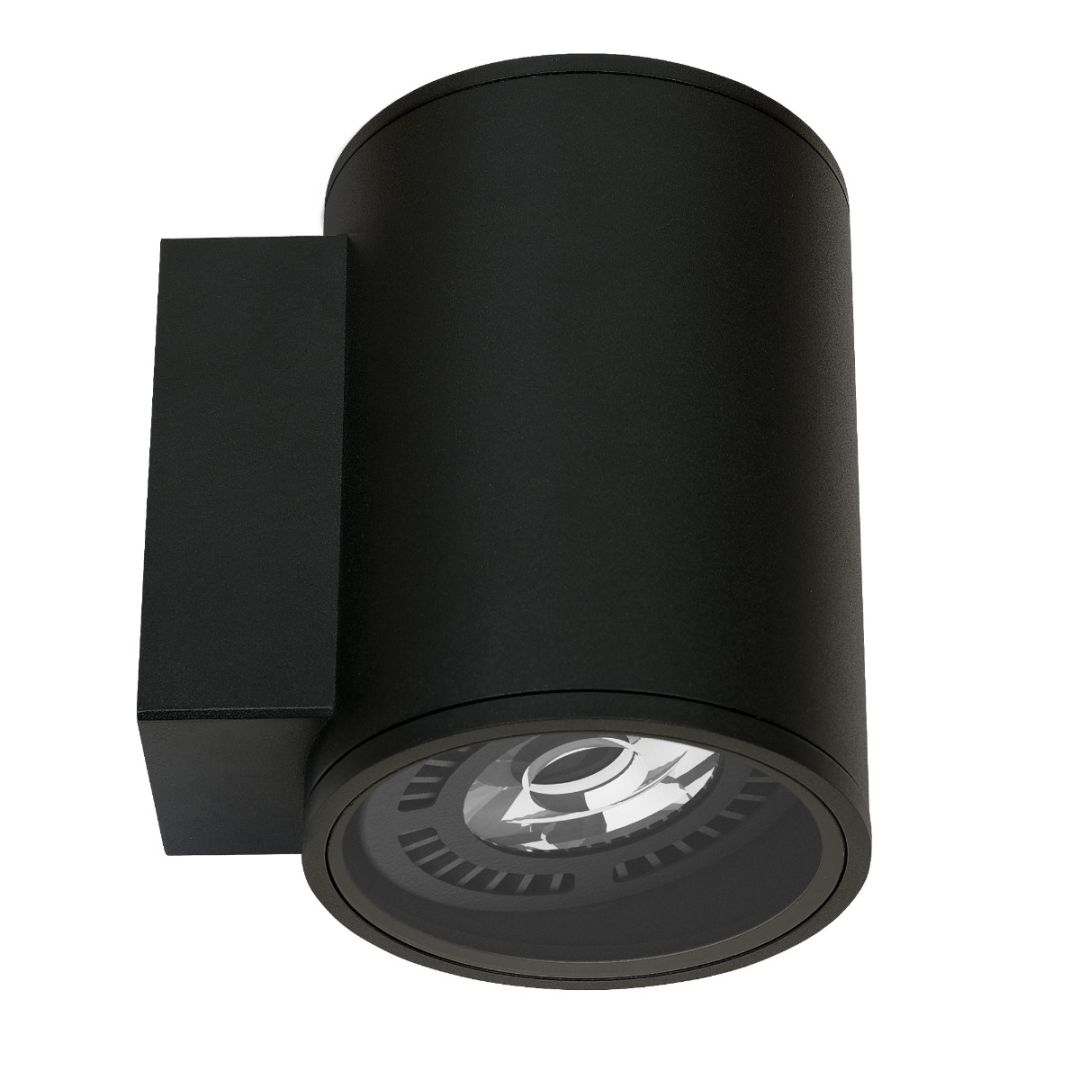

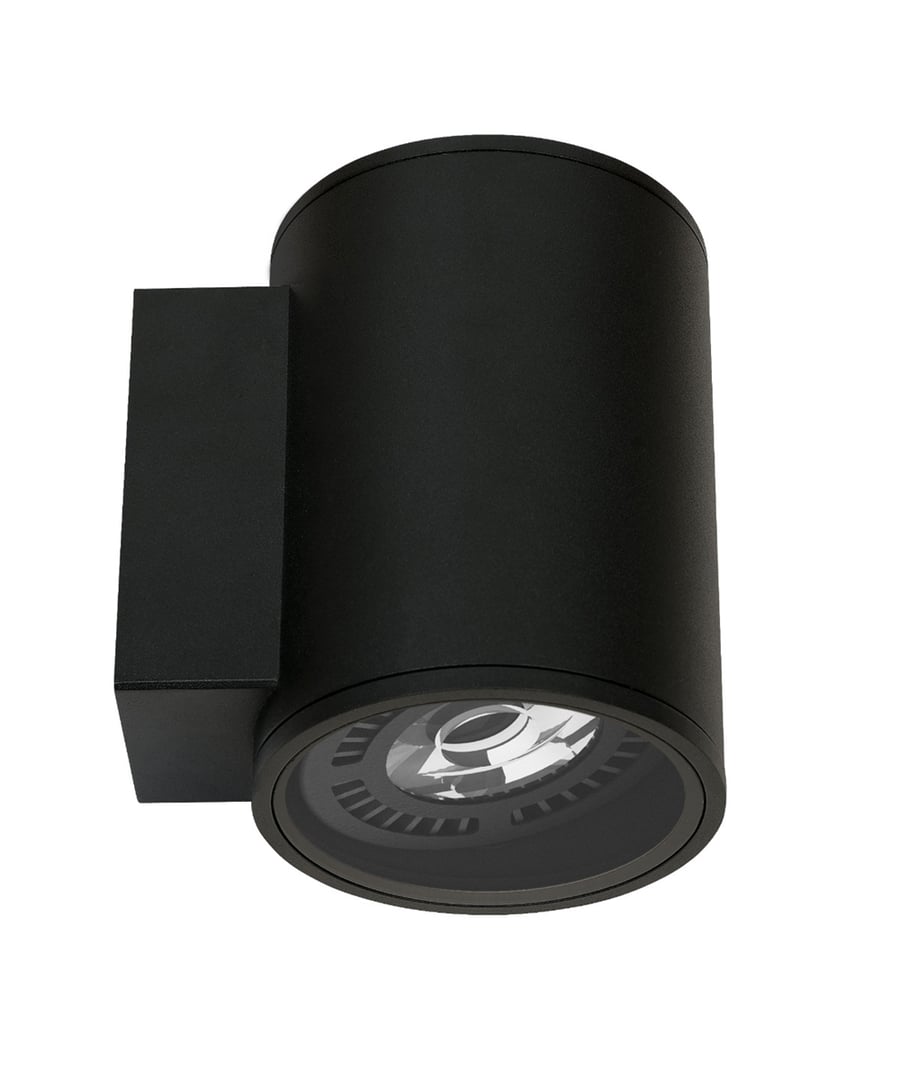

Alcon Lighting 11218-ADJ Pavo 6-inch Adjustable Cylinder Wall Architectural LED
For specification sheet options that don’t appear as selections below, please call (877) 733-5236.
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
|Return Policy||Assembled to Order. Non-Refundable.|
|Regulations||CETL listed, cUL, Made in USA, IP65, LM80 Tested|
|Finish||White, Black, Silver, Bronze|
|Color Temperature||4000K Cool White, 2700K Residential Warm|
|Product Type||Direct Downlight|
|Lumen Output||600 - 1199 Lumens|
|Lumen Output Minimum||2000 Lumens|
|Lumen Output Max||5200 Lumens|
|Wattage||2x15 Watts, 2x22 Watts, 2x32 Watts|
|Beam Spread||45° Flood, 60° Wide Flood|
This adjustable cylinder wall light offers functional versatility. The low-glare fixture can be used for interior and exterior retail or commercial purposes. The architectural LED downlight adds and enhances effects, safety and security. Downlighting only.
Dimensions: D 5.69" x H 7.86"
Construction: Round One Piece High Grade Aluminum with
corrosion-resistant finish that includes an adjustable led array
that rotates 25° with optics
Light Engine: LED Chip-On-Board
Lens: Tempered Glass and Silicone O-Ring
Lumen: 1500lm (9W) Reflector: Glare-Free, One piece, Heavy Gauge Aluminum
Mounting: Includes Bracket for Installation Directly to a
4" octagonal electrical junction-box
Voltage: 120V (Non-Dimming), 120V/277V (Dimming)
Dimming: Universal Dimming System Compatible with
2-Wire TRIAC, 3-Wire ELV, and 5-Wire 0-10V Dimmers
Life: L70 - 50,000 Hours
Emergency: 90 Minutes Minimum, Remote Test Switch, Plate Cover, Junction Box Included
Listing: ETL/cETL Listed Suitable for Wet Location. Assembled in the US (IP65) Electrical: Electronic Direct Current Class 2 driver
Warranty: 5 Years Carefree for Parts and Components (Labor not included). We recommend the use of surge protectors on the power entering LED Housings. Surge damage is not covered by warranty.
Compliancy: Dark Sky Compliant when fixture is pointing downward.
