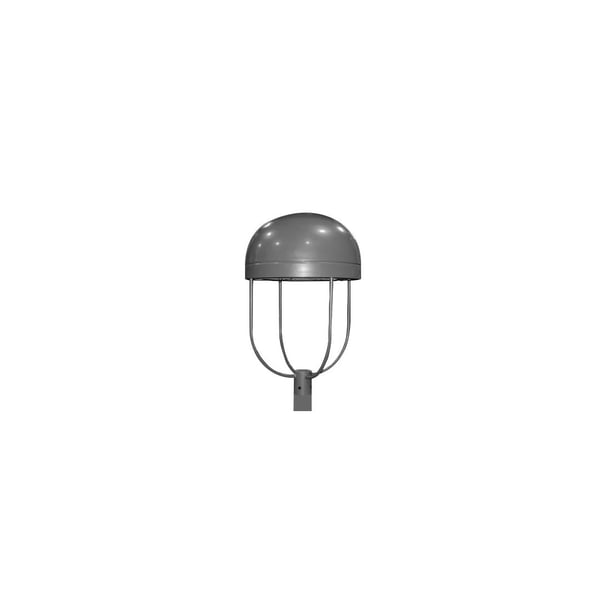

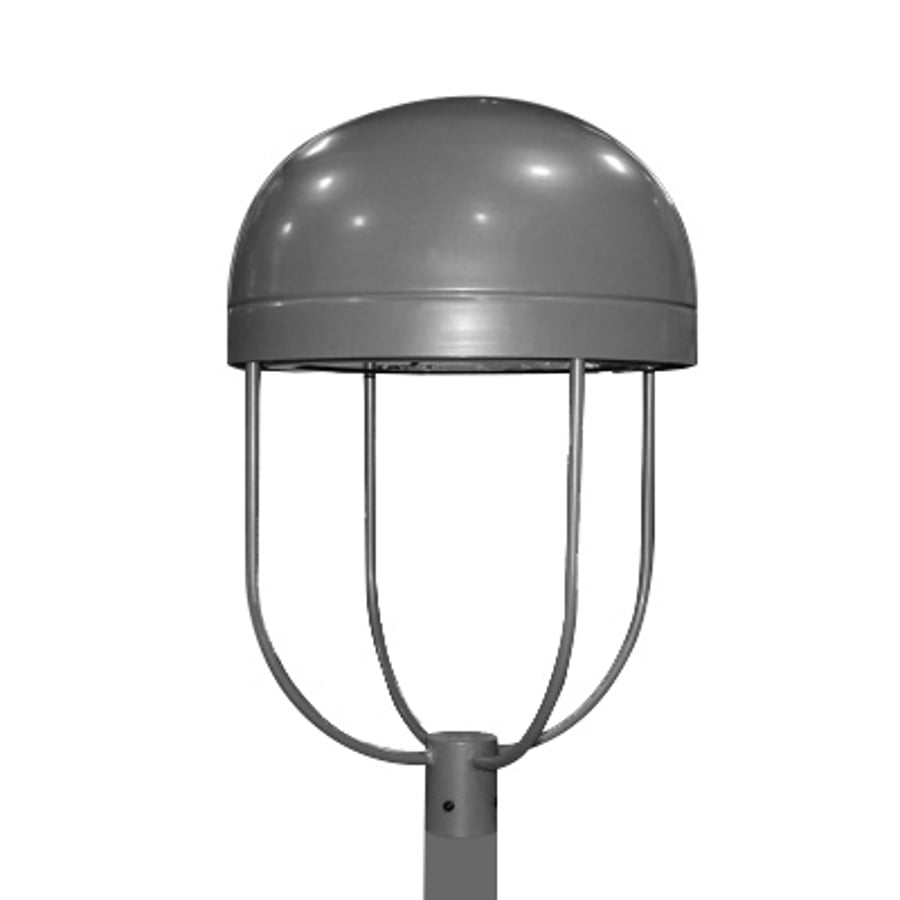

Rayon T393LED LED Dome Top Spider Cylinder Luminaire Fixture

The intended use of this product is for parking lots, walkways, shopping centers, recreational areas, or any open outdoor commercial or industrial space.

HOUSING
Weathertight unit continuous heliarc welded at all seams, spun from 0.080” aluminum.

FIXTURE ARM
Spider mount (four legs)

FINISH
Thermoset polyester oven-baked powdercoat, in any standard color. Made to order colors are available to your specification.

OPTICS
A one-piece hydro form or segmented reflector with specular aluminum finish.

LED
High output LEDs offer a minimum estimated operating life of 50,000 hours in 3000K, 3500K, 4000K, or 5000K (standard) with CRI>83. LEDs placed on high performance aluminum heatsink for reduced junction temperatures and extended life.

EPA
Effective Projected Area (Sq. Ft.): Type A: 1.952 ft^2 (1 fixture),
                                                       Type B: 2.383 ft^2 (1 fixture)

DRIVER
Durable and long lasting LED driver operates at 120-277V and boasts a 90% power factor at 50 to 60 Hz with 0-10V Dimming Constant Current. Driver protections includes: Output open load, over-current and short-circuit, and over-temperature with auto recovery. Step down transformer may be utilized for 480V or 347V applications.
