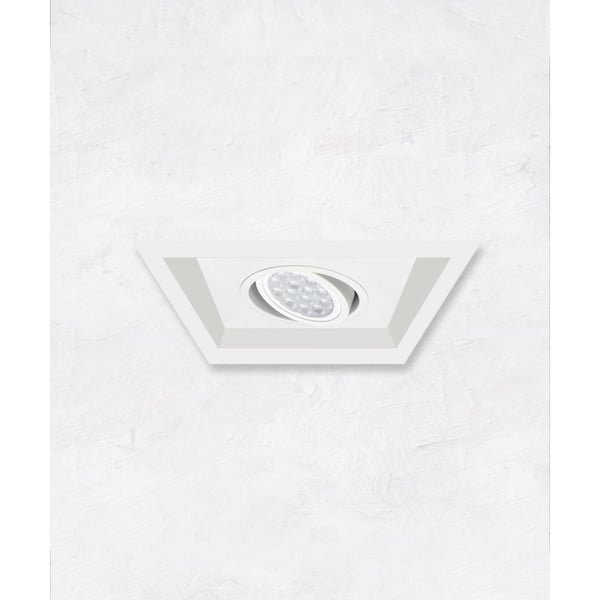

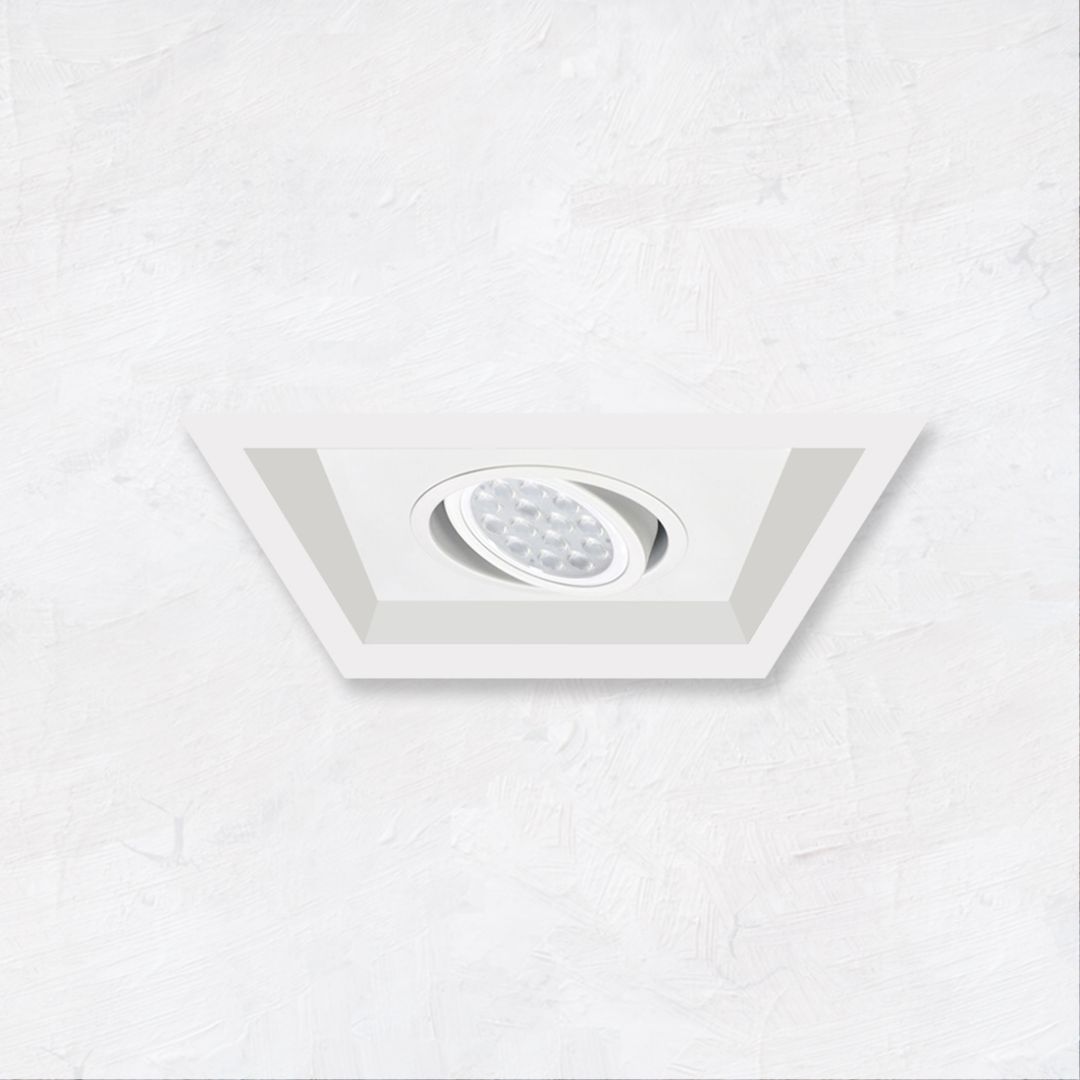

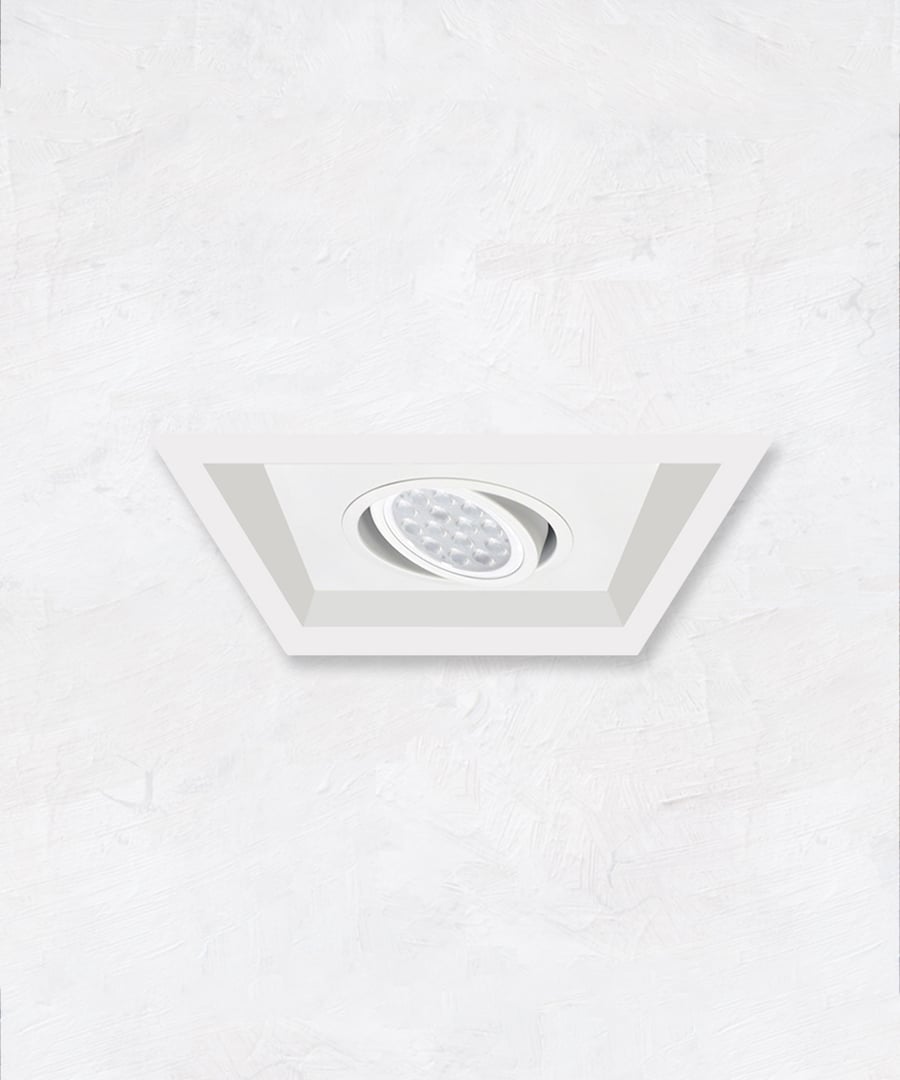

Alcon Lighting 14300-1 Oculare Architectural LED Flanged Adjustable 1 Head Multiple Recessed Lighting System Direct Down Fixture
$274.95
SKU
14300-1
In stock
Lead Time
Built to Order: 1-2 weeks
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
Downloads
Other Products You Might Like
Accessories
Product information
Overview
The specification grade Oculare Architectural LED Flanged Multiple Recessed Lighting System is ideal for retail and commercial recessed can light applications. Recessed multiple lights are available in one, two, and three lamp linear configurations and features specifiable beam spreads.
FEATURES
Construction: Galvanized Steel
Installation: Universal Brackets Accept 25" C-Channel Bar Hangers, 27" Flat Bar Hangers, 24-1/2" Bar Hangers with Captive Nails, or Simple Rigid 1/2" Steel Conduit for Tie Down to Ceiling Grids
Adjustability: 350° Horizontal and 40° Vertical, Each Head Can Be Adjusted Individually CRI: 90+
Operating Temperature: -32°F (0°C) - 113°F (45°C)
Driver: 120V; Electronic Low Voltage (100%-1%)
Warranty: 5 Years
Listings: cULus Listed, RoHS
Specifications
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 14300-1 |
| Return Policy | Assembled to Order. A 30% Restocking Fee May Apply. |
| Regulations | cUL |
| Voltage | 120-277V |
| Color Temperature | 2700K Warm White, 4100K Cool White |
| Configuration | 1 Light (Recessed Multiple) |
| Features | 0-10V Dimming, ELV Dimming, Damp Location Rated |
| Mount Type | Recessed Flanged |
| Product Type | Direct Downlight |
| Lumen Output | 100 - 599 Lumens |
| Lumen Output Minimum | 500 Lumens |
| Wattage | 7 Watts |
| Beam Spread | 20°, 40º |
