Alcon Lighting 12113 NLP Architectural LED Linear Suspended Pendant Mount Direct/Indirect Light Fixture
NOTE: given the nature of built-to-order products, we cannot guarantee lead-times. Occasional back-order of components (i.e. LED drivers, diodes, and/or other electrical components) can sometimes lead to delays in assembly. Estimated ship dates are, by definition, not guaranteed.

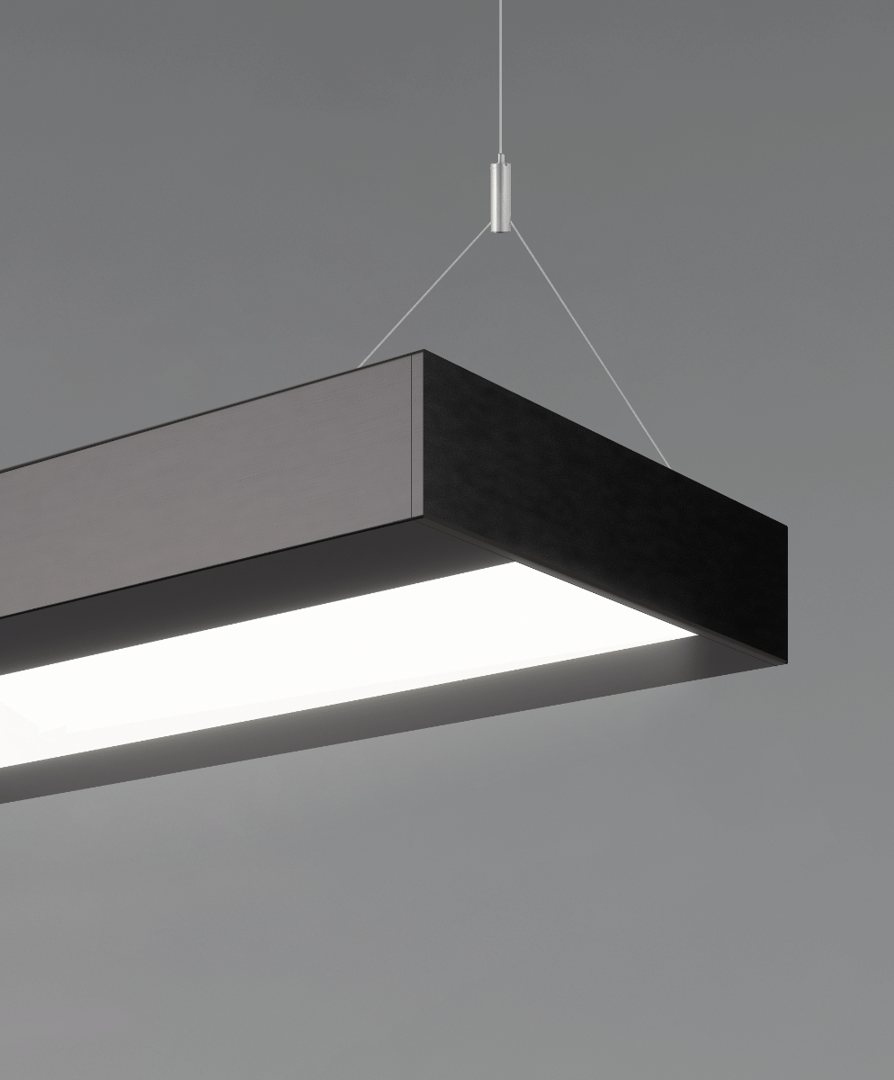

The specification grade Alcon Lighting NLP Series Architectural LED Suspended Pendant Lighting delivers continuous clean lines and clear light to commercial, hospitality and residential interior lighting applications. Our modern, slim profiles and stylish linear chandelier designs offer excellent direct and indirect lighting, exceptional performance and versatility in offices, classrooms, conference rooms, museums, retail outlets, hotels, restaurants, and more. The NLP integrated LED linear pendant lighting is available in lengths of 4’ and 8’, and can be joined together in seamless runs of any length.
FEATURES
Construction: Die-Formed and Welded 22-Gauge Cold Rolled Steel
Continuous Row: Full Ability to Tandem Mount for Continuous Run Application Equipped
with Male & Female Quick Connect Harnesses
Custom Design: Offered with Pre-Fabricated and Fully Illuminated Corners

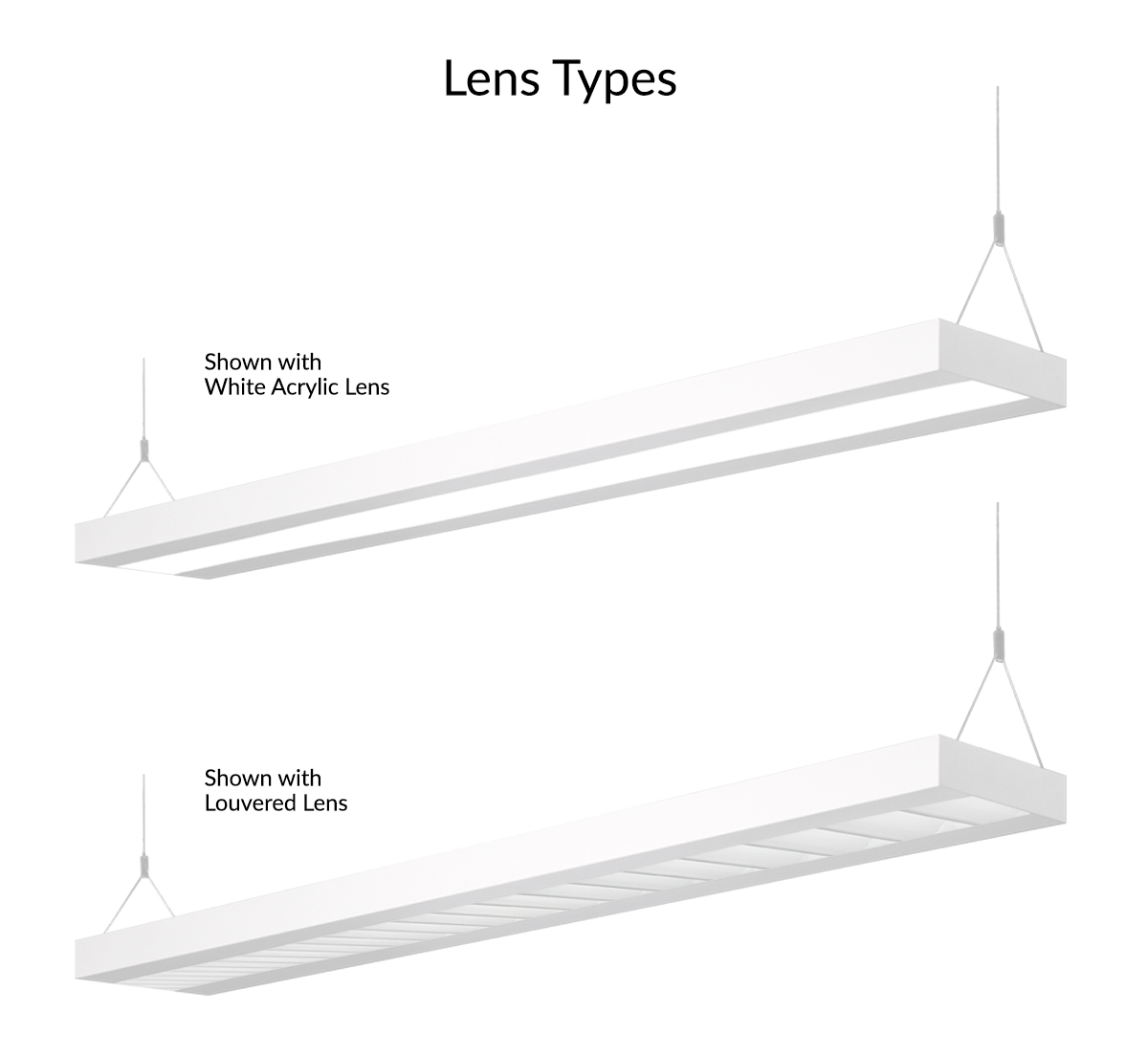

Lens: Glare Free Snap In Frosted Acrylic for Even Distribution
Voltage: 120-277V (50/60 Hz) Constant Current
Dimming: 5-Wire 0-10V (100%-10%), 3-Wire Electronic Low Voltage (100%-1%)
CRI: 80+
Life: 50,000 Hours L70
Warranty: 5 Years Carefree for Parts & Components (Labor Not Included)
Listings: CA Title 24 Compliant, cETL Listed, LED Chips Tested to LM-80 Standards
*48" Adjustable Aircraft Cable is standard.
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 12113 |
| Return Policy | Assembled to Order. A 50% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | UL Listed, Assembled in the USA, Buy American Act |
| Voltage | 120V - 277V |
| Finish | White, Black, Silver, Red |
| Color Temperature | 3000K Warm White, 3500K Soft White, 4000K Cool White, 5000K Day Light |
| CRI | 80+ |
| Lens Opacity | Frosted |
| Features | 0-10V Dimming, ELV Dimming, Emergency Battery Backup |
| Mount Type | Pendant |
| Shape | Linear |
| Product Type | Direct/Indirect |
| Direction | Up/Down |
| Width | 7.6" |
| Length | 48" |
| Lumen Output | 2200 - 3499 Lumens, 3500 - 4999 Lumens, 5000 - 7499 Lumens |
| Lumen Output Minimum | 2400 Lumens |
| Lumen Output Max | 5400 Lumens |
| Wattage | 12 Watts, 18 Watts, 24 Watts, 36 Watts, 48 Watts |
