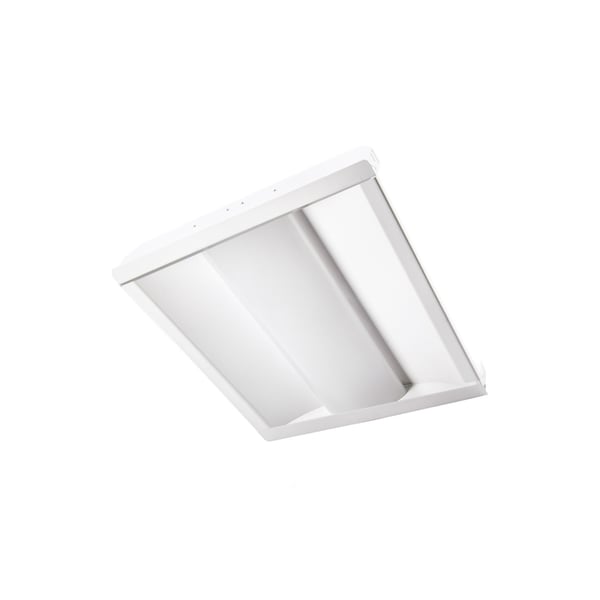

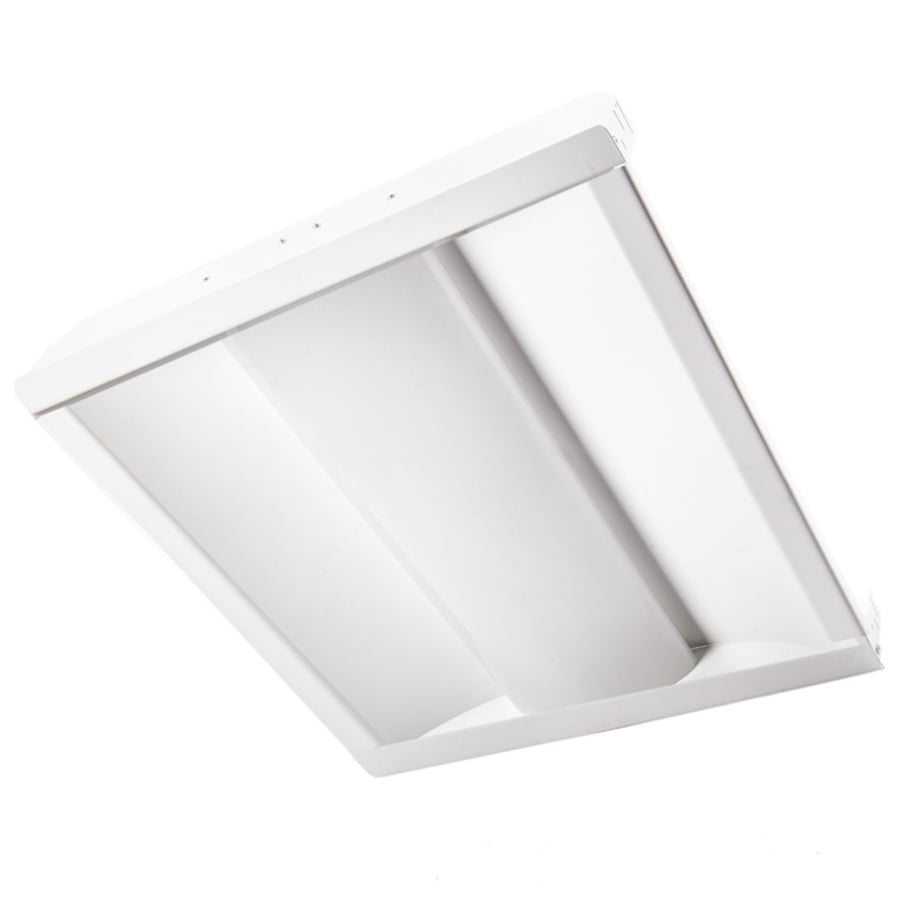

Alphalite IRT-22H Infinity Retrofit Kit 2x2 Foot 34W Architectural LED Troffer with Center Diffuser
by Alphalite
Model IRT-22H
Details
Description
The Alphalite IRT-22L Infinity Retrofit Kit 2x2 Foot 25W Architectural LED Troffer with Center Diffuser is the ideal solution for 2x2 LED troffer applications. The IRT-22L offers abundant light and modern design perfect for today’s interior spaces. Diffuser lens provides even and consistent light while eliminating pixelation. Toolless removal of diffuser allows access to LED array. Suited for offices, retail, and other architectural spaces that demand energy reduction and high quality light.Features:
• 25 Watts
• Installs within existing troffer and louvers
• Dimming: 0-10V continuous (10-100%) comes standard
• Standard Efficiency: 125 lm/W
• FCC Part 15 Class B
Manufacturer
Alphalite
Model
IRT-22H
Lead Time
Ships in: 3-7 Business Days
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
UL, DLC, cUL
Lumens per foot
3500 - 4999 Lumens
Lumen Output Minimum
4026 Lumens
Lumen Output Max
4224 Lumens
Wattage
25 Watts
Wattage
34 Watts
Voltage
120-277V
Finish
White
Light Color
4000K, 5000K
CRI
80+
Mounting
Lay-In (T-Grid)
Length
23.86"
Length
2 ft.
