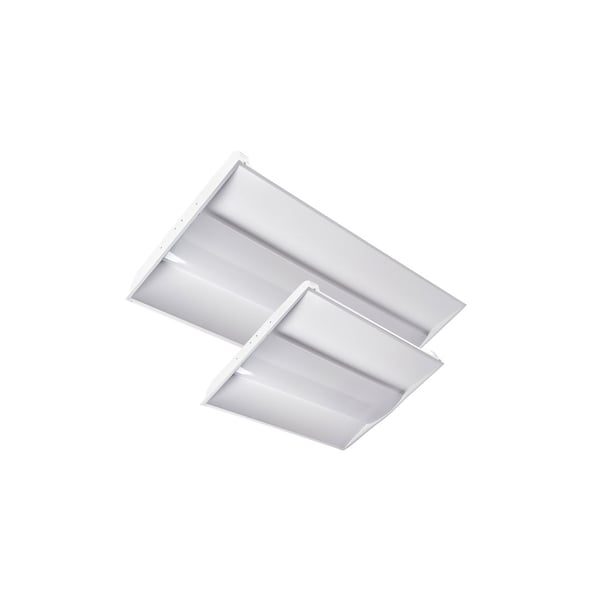

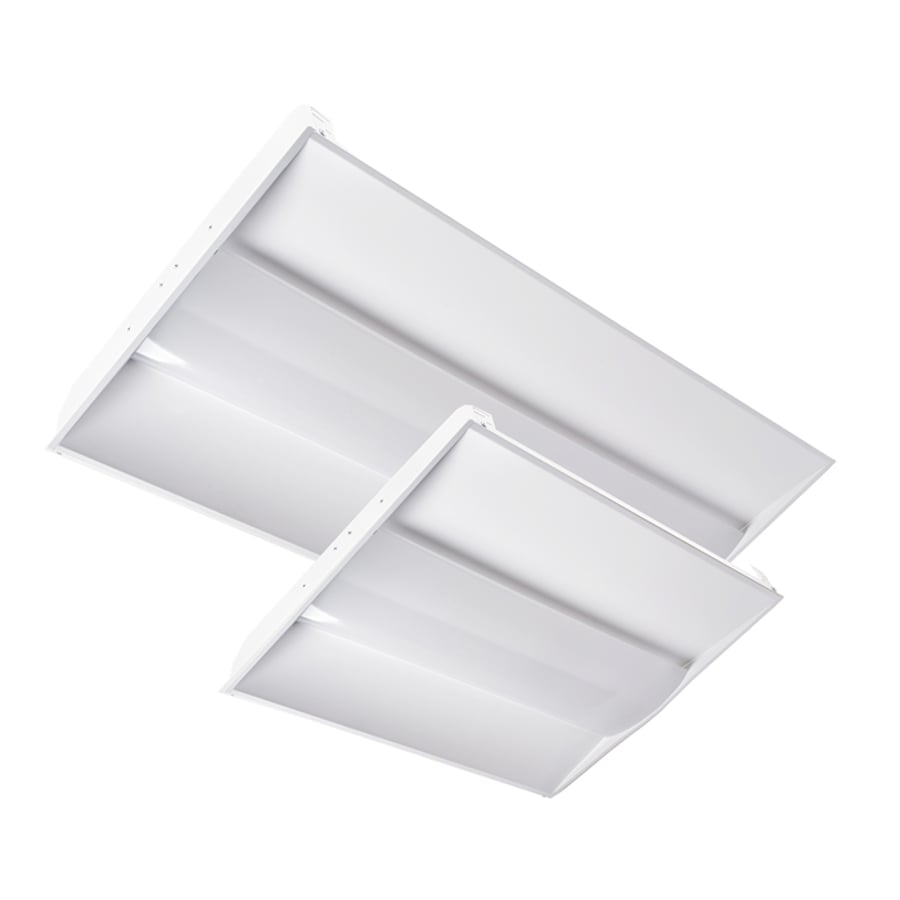

Alphalite ILT-CB-22H Infinity Volumetric 2x2 Foot 41W Architectural LED Troffer with Center Diffuser
by Alphalite
Model ILT-CB-22H
Details
Description
The Alphalite ILT-CB-22H Infinity Volumetric 2x2 Foot 41W Architectural LED Troffer with Center Diffuser is the ideal solution for 2x2 LED troffer applications. The ILT-CB-22H offers abundant light and modern design perfect for today’s interior spaces. Diffuser lens provides even and consistent light while eliminating pixelation. Toolless removal of diffuser allows access to LED array.Suited for offices, conference rooms, corridors, schools, labs, and public spaces.Features:
• 41 Watts
• LED module and driver are replaceable.
• Dimming: 0-10V continuous (10-100%) comes standard
• Standard Efficiency: 125 lm/W
• FCC Part 15 Class B
Manufacturer
Alphalite
Model
ILT-CB-22H
Lead Time
Ships in: 3-7 Business Days
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
UL, DLC, cUL
Lumens per foot
3500 - 4999 Lumens, 5000 - 7499 Lumens
Lumen Output Minimum
4880 Lumens
Lumen Output Max
5040 Lumens
Wattage
41 Watts
Wattage
41 Watts
Voltage
120-277V
Finish
White
Light Color
4000K, 5000K
CRI
80+
Mounting
Lay-In (T-Grid)
Length
23.78"
Length
2 ft.
