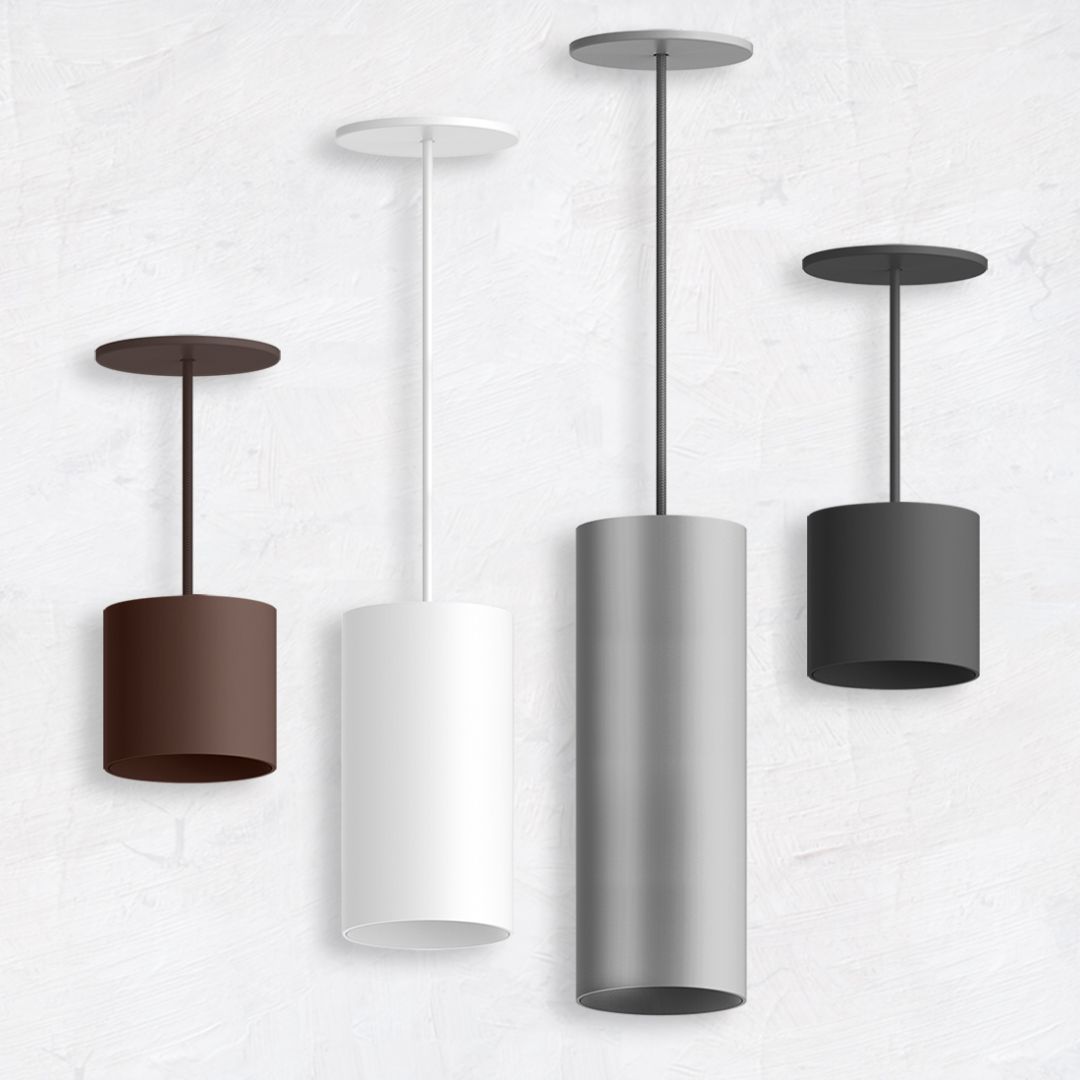

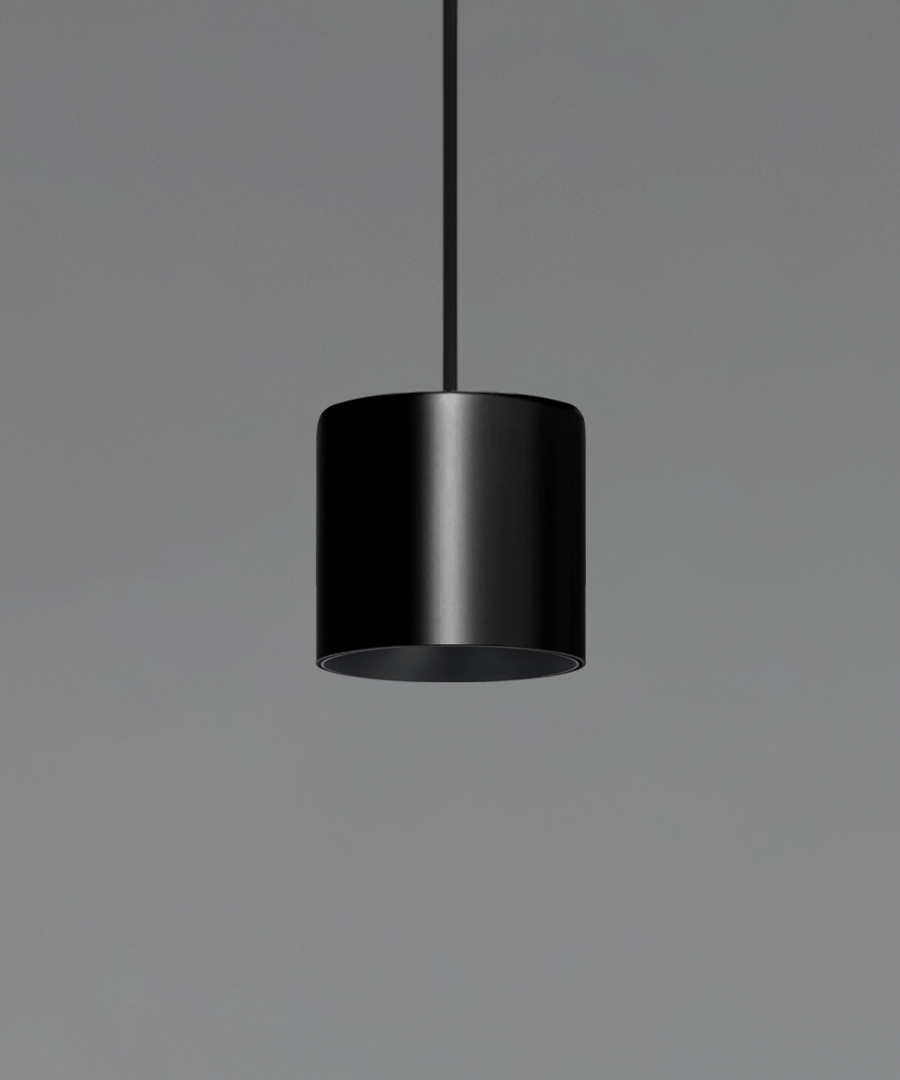

Alcon 12302-P-B Beveled Architectural LED Cylinder Pendant Light

Energy Star cULus
by Alcon Lighting

Available Model 12302-P

Lead Time
Built to Order: 1-2 Weeks
With several mounting options, this cylindrical LED light is extremely versatile. Our pendant uplight or downlight option affords lighting from a single cylinder in diecast aluminum with no visible hardware. The light, available with lumen outputs ranging from 750 lm (10W) up to 3000 lm (40W), also mounts with stem and aircraft cable. Though built for commercial-grade applications, with a variety of trim styles, the durable fixture can also be used for residential installation. Fixed 40° Beam Spread standard, other beam spread options available on specification sheet.
Manufacturer
Alcon Lighting
Model
12302-P
Lead Time
Built to Order: 1-2 Weeks
Return Policy
Assembled to Order. A 50% Restocking Fee May Apply.
Qualifications
Assembled in USA (ARRA), Title 24 , Energy Star , Title 24-JA8, cULus
Voltage
120-277V
Finish
White, Black, Bronze, Silver, Custom RAL (Extended Lead Time May Apply)
CRI
90+
Driver
0-10V, ELV, Triac, Lutron Ecosystem Hi-Lume 1%
Features
Emergency Backup Battery
Mounting
Pendant
Light Direction
Direct (Standard), Direct/Indirect available upon request
Height
12", 4", 8"
Diameter
4.3"
Lumens per foot
600 - 1199 Lumens
Wattage
10.8 Watts, 28 Watts

Customize

Related Products

WDP 2100 0-10V Wireless 5 Wire to 3 Wire LED Dimming Pack
WDP 2100 0-10V Wireless 5 Wire to 3 Wire LED Dimming Pack
Model WDP 2100
$199.95
Details Files
Alcon Lighting Manor 2101 Thin Profile 0-10V Slide-to-Off Dimmer Switch Single-Pole 120-277V (8A Max)
Alcon Lighting Manor 2101 Thin Profile 0-10V Slide-to-Off Dimmer Switch Single-Pole 120-277V (8A Max)
Model 2101
$129.95
Details Files

We found other products you might like!

Alcon 12303 Silo Architectural LED 3 Inch Cylinder Pendant Light
Alcon 12303 Silo Architectural LED 3 Inch Cylinder Pendant Light
Model 12303
$259.95
Details Files

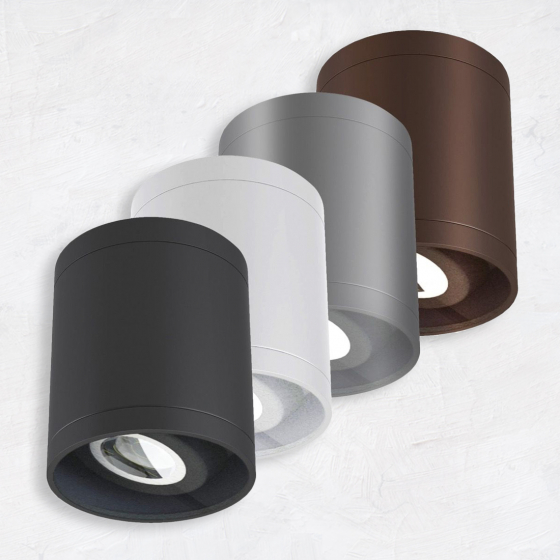

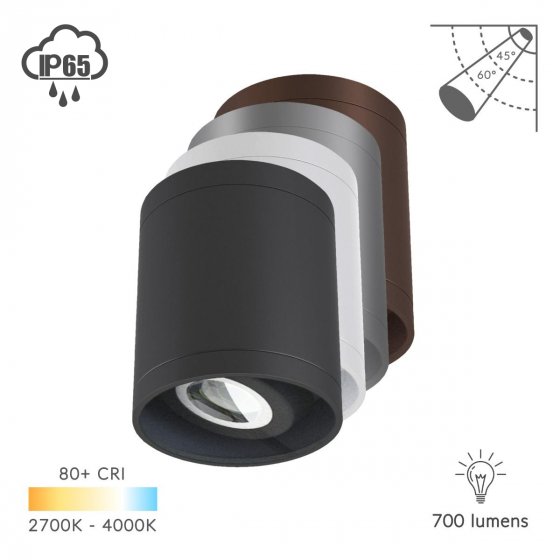

Alcon 11235-ADJ LED Cylinder Adjustable Ceiling Light
