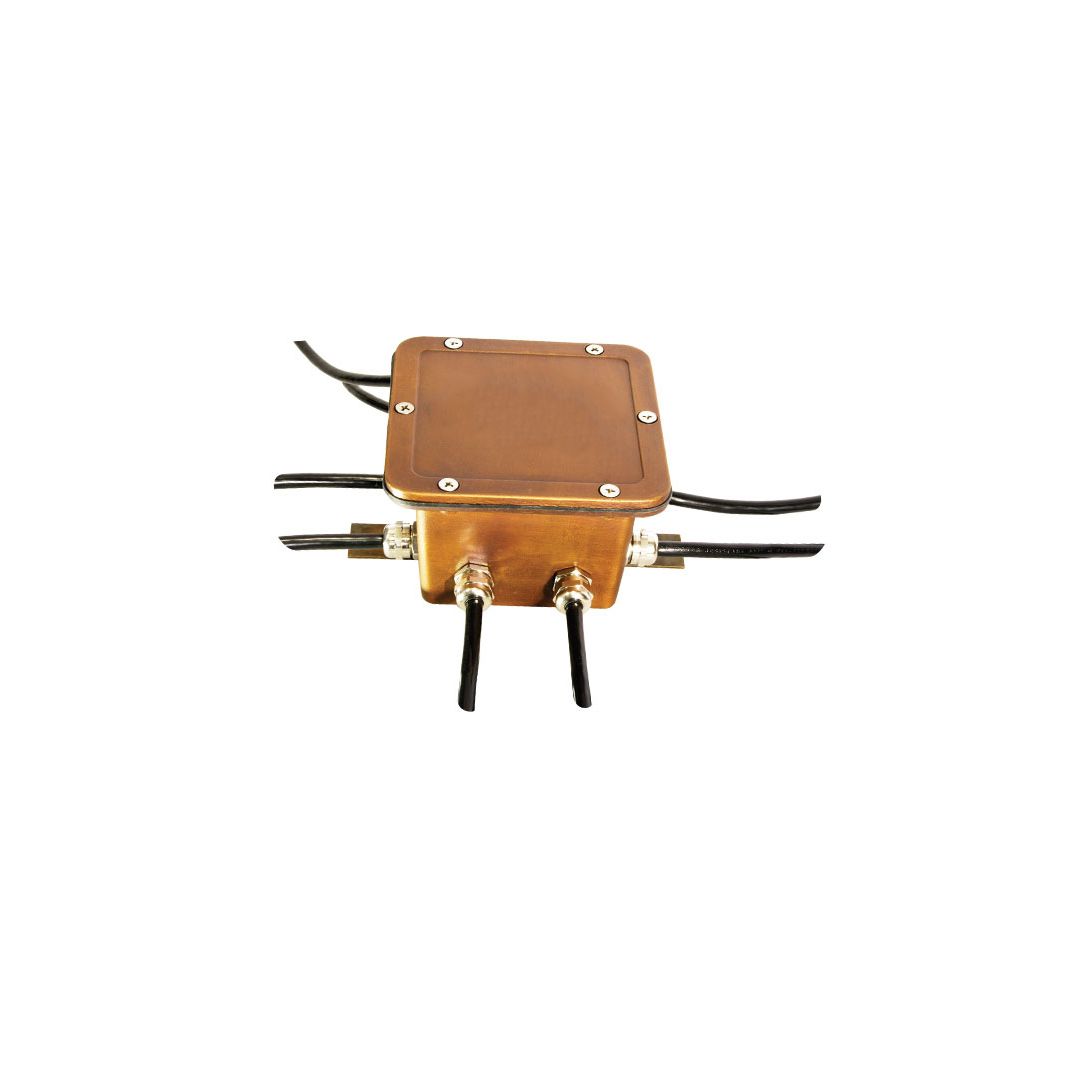

Alcon 17004 Submersible Underwater Junction Box

CETL listed IP68

Available SKU 17004

Lead Time
QuickShip

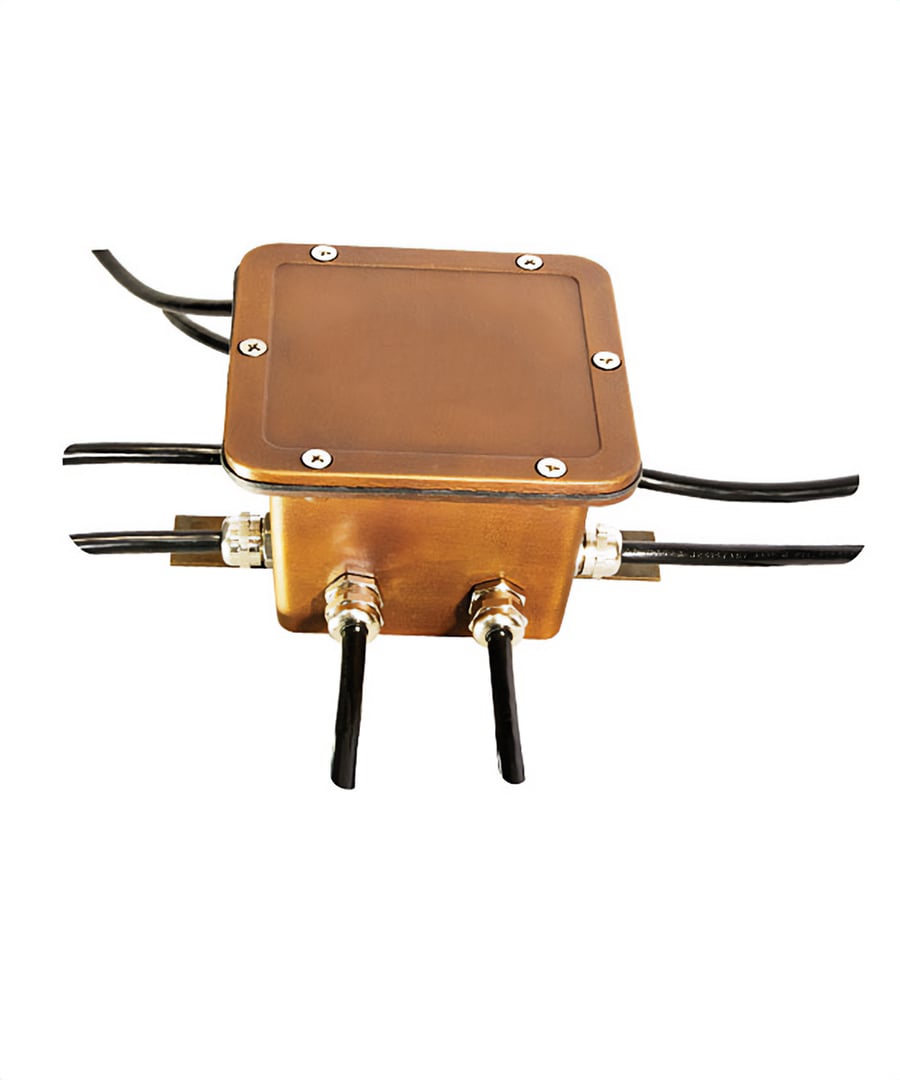

The specification grade Alcon Lighting Underwater Junction Box Surface Mount Fixture is a completely submersible electrical junction solution to connect multiple fountain lights to a single power supply. The brass submersible junction box is designed for connection of up to 8 12v fixtures with 18/2 wire plus one feed wire. Supplied standard without holes or fittings. To receive tapped holes and liquid tight fittings, specify quantity and size at time of order.

FEATURES

Construction: 20 Cubic Inch Cast Brass Body and Cast Brass Cover
Gasket: Black Silicone, 50 Durometer
Fittings: Standard J-Box Not Supplied with Fittings.
Brass, Nickel Plated PG9 Liquid Tight Available. Specify Number Required at Time of Order.
Fitting Options: Brass, Nickel Plated PG11 Liquid Tight.
Fitting Size Must Match Cable Size to Ensure Water Proof Connection.
Hole Tap Sizes: Available in PG9, PG11, 1/2"NPS & 3/4"NPS. For 1/2" or 3/4" Service Conduit, Consult Factory.
Internal Connector: Teal High Temperature Thermal Plastic Housing with Stainless Steel Barrel Lugs and 3M Dielectric Sealing Tape; 200 Watt Maximum Load.
Feed Wire: Standard J-box Not Supplied with Feed Wire.
12-2C Cable Available in Increments of 5 Feet Starting at 25 Feet. Specify at Time of Order. Mounting: Surface Mount Bracket Attached
Finish: Unfinished brass, Optional Finishes
Warranty: 3 Years Carefree for Parts & Components (Labor Not Included)
Listing: UL676 Listed for Underwater Luminaires, IP68, CE, cETL

Manufacturer
Alcon Lighting
SKU
17004
Lead Time
QuickShip
Return Policy
Assembled to Order. A 30% Restocking Fee May Apply.
Regulations
CETL listed, cETL Wet, UL, IP68
Note:
Hole tap sizes available are PG9, PG11, 1/2"NPS & 3/4"NPS. For 1/2" or 3/4" service conduit, consult factory
Brass Liquid Tight fittings recommended and fitting size must match cable size to ensure water proof connection
Finish
Black, Copper
Width
5"
Width
1"
Length
5"
Length
2 ft.
