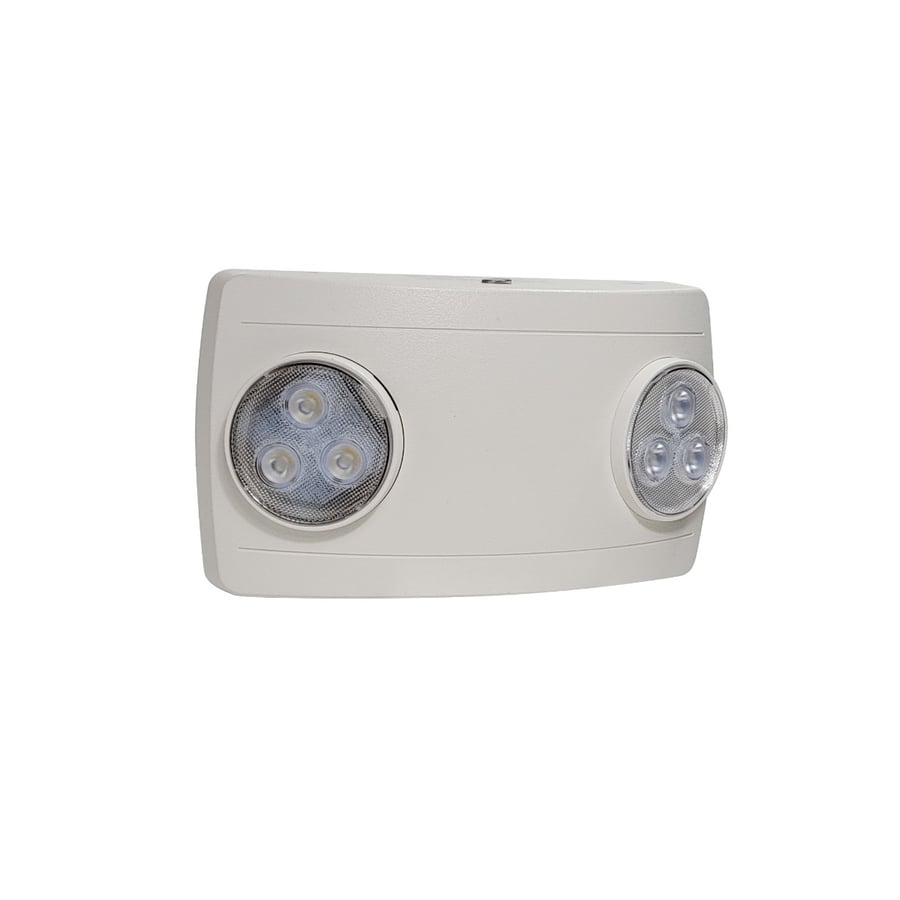

Alcon Lighting 16110 Vista Architectural LED Compact Dual Head Emergency Light Fixture
$29.95
SKU
16110
In Stock Assembly Required
Lead Time
Built to Order: 1-2 Weeks
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
Downloads
Other Products You Might Like
Product information
Overview
The Vista LED Compact Dual Head Emergency Light features two fully adjustable heads for emergency lighting with a lightweight, flame retardant design. The Vista is ideal for spaces that require emergency lighting applications.
Construction: Injection-molded Thermoplastic ABS Housing
5VA Flame Retardant Plastic Enclosure
Two Fully Adjustable Glare-Free Round Heads Mounting: Suitable for Wall or Ceiling
Top and Side Knockout for Conduit Application Operation: Minimum of 90 Minutes During Loss of Power with 24 Hour Maximum Recharge Time
Battery: NiCad 3.6V 3W Maintenance Free
Voltage: 120-277 VAC 60 Hz
Color Temperature: 6000K
Starting Temperature: 50°F (10°C) - 104°F (40°C)
Life: 35,000 Hours
Warranty: 3 Years
Listings: cULus Listed and Meets All Requirements in NFPA 70, NFPA 101 Life Safety Code
Suitable for Damp Locations
Construction: Injection-molded Thermoplastic ABS Housing
5VA Flame Retardant Plastic Enclosure
Two Fully Adjustable Glare-Free Round Heads Mounting: Suitable for Wall or Ceiling
Top and Side Knockout for Conduit Application Operation: Minimum of 90 Minutes During Loss of Power with 24 Hour Maximum Recharge Time
Battery: NiCad 3.6V 3W Maintenance Free
Voltage: 120-277 VAC 60 Hz
Color Temperature: 6000K
Starting Temperature: 50°F (10°C) - 104°F (40°C)
Life: 35,000 Hours
Warranty: 3 Years
Listings: cULus Listed and Meets All Requirements in NFPA 70, NFPA 101 Life Safety Code
Suitable for Damp Locations
Specifications
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 16110 |
| Return Policy | Assembled to Order. A 30% Restocking Fee May Apply. |
| Regulations | cUL, Assembled in the USA |
| Voltage | 120-277V |
| Color Temperature | 6000K Day Light |
| Mount Type | Wall |
| Width | 2-3/16" |
| Length | 7-5/16" |
| Lumen Output | 100 - 599 Lumens |
| Lumen Output Minimum | 150 lumens |
| Lumen Output Max | 250 lumens |
| Wattage | 2 Watts, 4 Watts |
