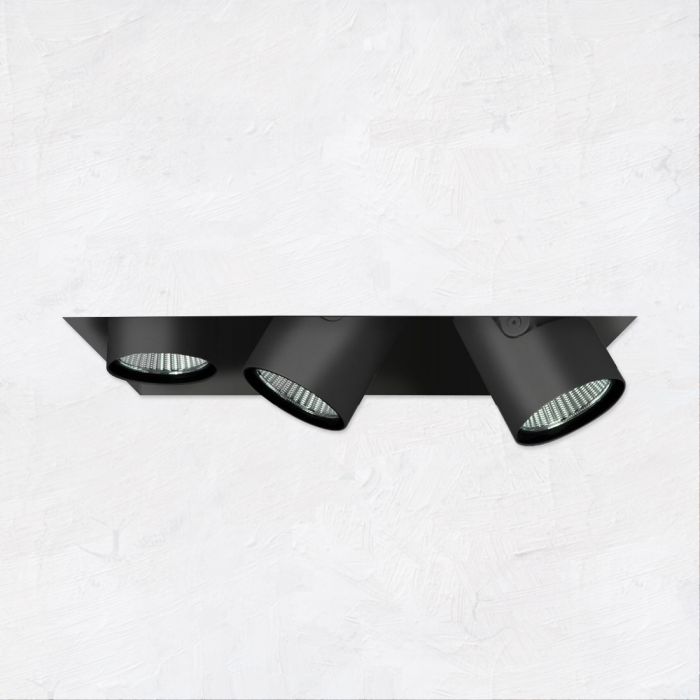

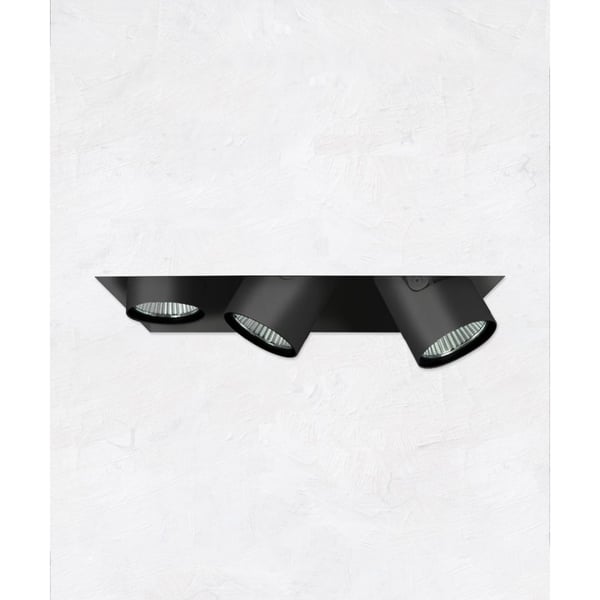

Alcon Lighting 14113-3 Oculare Pull-Down Architectural LED Trimless and Flanged Adjustable 3 Heads Multiple Recessed Lighting System Direct Down Fixture
Components In-Stock - Assembly Required
Lead Time
Built to Order: 1-2 weeks
NOTE: given the nature of built-to-order products, we cannot guarantee lead-times. Occasional back-order of components (i.e. LED drivers, diodes, and/or other electrical components) can sometimes lead to delays in assembly. Estimated ship dates are, by definition, not guaranteed. That said, we are committed to meeting and beating our lead-time estimates.
SKU
14113-3
$649.95
Other Products You Might Like
Details
The specification grade Oculare Pull-Down Architectural LED Trimless and Flanged Multiples Lighting System is available in one to three head configurations and the capability to be installed in new or remodel constructions. The Pull-Down is an ideal option for commercial and residential applications where clean lighting and quality fixtures are desired.
Construction: 0.05" Galvanized Steel with Ventilation Openings for Proper Heat Dissipation
Includes Mud-In Rings
Installation: Housing can be Installed in Existing Drywall Ceilings or Can Be Roughed-In for New Construction with Optional Frame-In
Ceiling Depth: 1-5/8" Max
Minimum Clearance: 3" from Thermal Insulation and 1/2" from Any Adjacent Building Components
Voltage: 120 or 277
Wattage: 30 Watts Per Module
Lumens: 2000 Lumens Per Module
Amp: 0.3A Per Module
Dimming: 120V TRIAC / 0-10 | 277V 0-10
CRI: 90+
Power Factor: > .90
Life: 50,000 Hours
Operating Temperature: -32°F (0°C) - 113°F (45°C)
Warranty: 5 Years
Listings: cULus Listed
RoHS
Construction: 0.05" Galvanized Steel with Ventilation Openings for Proper Heat Dissipation
Includes Mud-In Rings
Installation: Housing can be Installed in Existing Drywall Ceilings or Can Be Roughed-In for New Construction with Optional Frame-In
Ceiling Depth: 1-5/8" Max
Minimum Clearance: 3" from Thermal Insulation and 1/2" from Any Adjacent Building Components
Voltage: 120 or 277
Wattage: 30 Watts Per Module
Lumens: 2000 Lumens Per Module
Amp: 0.3A Per Module
Dimming: 120V TRIAC / 0-10 | 277V 0-10
CRI: 90+
Power Factor: > .90
Life: 50,000 Hours
Operating Temperature: -32°F (0°C) - 113°F (45°C)
Warranty: 5 Years
Listings: cULus Listed
RoHS
More Information
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 14113-3 |
| Return Policy | Assembled to Order. A 50% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | cUL Listed, Assembled in the USA |
| Voltage | 120V - 277V |
| Finish | White, Black |
| Color Temperature | 3000K Warm White, 3500K Soft White, 4000K Cool White, 2700K Warm White |
| CRI | 90+ |
| Configuration | 3 Light (Recessed Multiple) |
| Features | 0-10V Dimming, ELV Dimming, Damp Location Rated |
| Mount Type | Recessed Flanged, Recessed Trimless |
| Shape | Square |
| Product Type | Direct Downlight |
| Width | 6-1/4" |
| Height | 9.75" |
| Length | 18-1/2" |
| Lumen Output | 3500 - 4999 Lumens |
| Lumen Output Max | 6000 Lumens |
| Wattage | 90 Watts |
