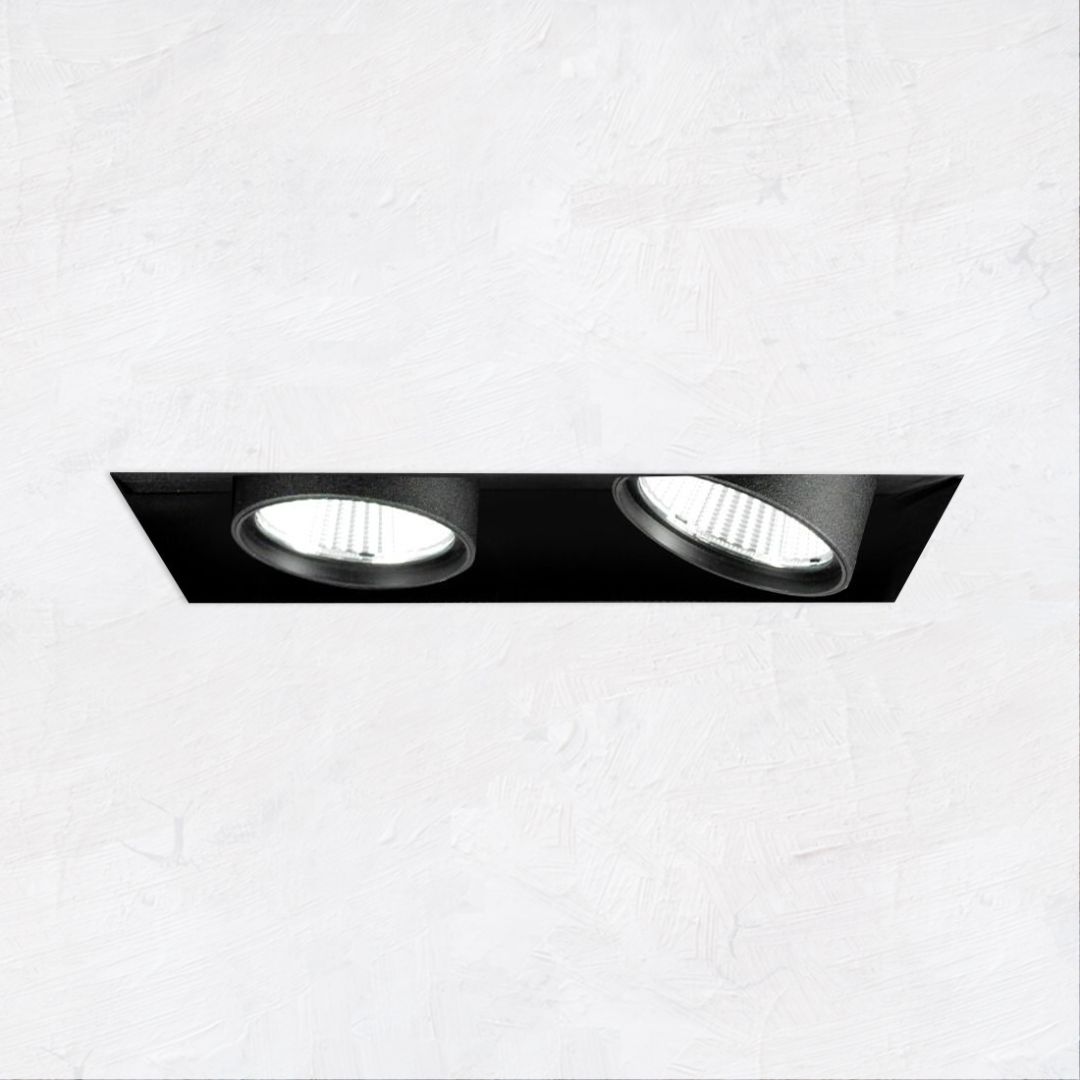

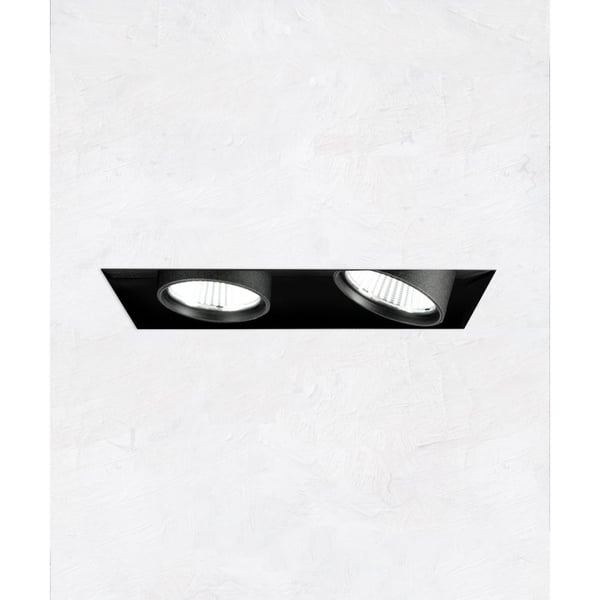

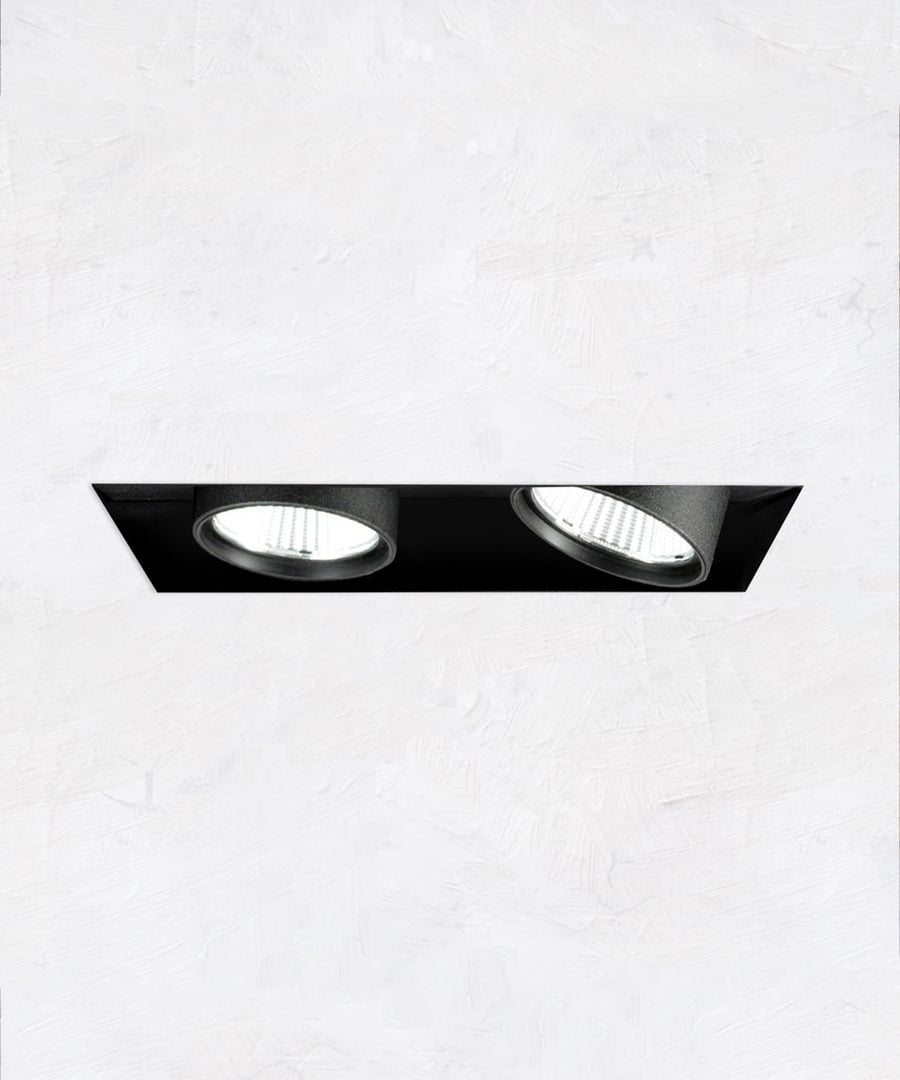

Alcon Lighting 14113-2 Oculare Pull-Down Architectural LED Trimless and Flanged Adjustable 2 Heads Multiple Recessed Lighting System Direct Down Fixture
$449.95
SKU
14113-2
In Stock Assembly Required
Lead Time
Built to Order: 1-2 weeks
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
Downloads
Other Products You Might Like
Product information
Overview
The specification grade Oculare Pull-Down Architectural LED Trimless and Flanged Multiples Lighting System is available in one to three heads configurations and the capability to be installed in new or remodel constructions. The Pull-Down is an ideal option for commercial and residential applications where clean lighting and quality fixtures are desired.
Construction: 0.05" Galvanized Steel with Ventilation Openings for Proper Heat Dissipation
Includes Mud-In Rings
Installation: Housing can be Installed in Existing Drywall Ceilings or Can Be Roughed-In for New Construction with Optional Frame-In
Ceiling Depth: 1-5/8" Max
Minimum Clearance: 3" from Thermal Insulation and 1/2" from Any Adjacent Building Components
Voltage: 120 or 277
Wattage: 30 Watts Per Module
Lumens: 2100 Lumens Per Module
Amp: 0.3A Per Module
Dimming: 120V TRIAC / 0-10 | 277V 0-10
CRI: 90+
Power Factor: >.90
Life: 50,000 Hours
Operating Temperature: -32°F (0°C) - 113°F (45°C)
Warranty: 5 Years
Listings: cULus Listed
RoHS
Construction: 0.05" Galvanized Steel with Ventilation Openings for Proper Heat Dissipation
Includes Mud-In Rings
Installation: Housing can be Installed in Existing Drywall Ceilings or Can Be Roughed-In for New Construction with Optional Frame-In
Ceiling Depth: 1-5/8" Max
Minimum Clearance: 3" from Thermal Insulation and 1/2" from Any Adjacent Building Components
Voltage: 120 or 277
Wattage: 30 Watts Per Module
Lumens: 2100 Lumens Per Module
Amp: 0.3A Per Module
Dimming: 120V TRIAC / 0-10 | 277V 0-10
CRI: 90+
Power Factor: >.90
Life: 50,000 Hours
Operating Temperature: -32°F (0°C) - 113°F (45°C)
Warranty: 5 Years
Listings: cULus Listed
RoHS
Specifications
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 14113-2 |
| Return Policy | Assembled to Order. A 50% Restocking Fee May Apply. |
| Regulations | cUL, Assembled in the USA |
| Voltage | 120-277V |
| Color Temperature | 2700K Warm White, 4000K Cool White |
| CRI | 90+ |
| Configuration | 2 Light (Recessed Multiple) |
| Features | 0-10V Dimming, ELV Dimming, Damp Location Rated |
| Mount Type | Recessed Flanged, Recessed Trimless |
| Product Type | Direct Downlight |
| Width | 6-1/4" |
| Height | 9.75" |
| Length | 12-1/4" |
| Lumen Output | 3500 - 4999 Lumens |
| Wattage | 60 Watts |
