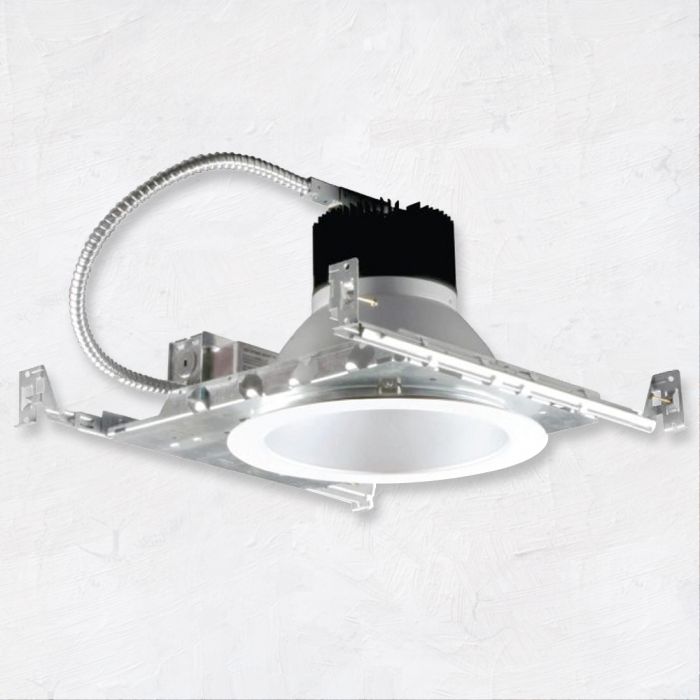

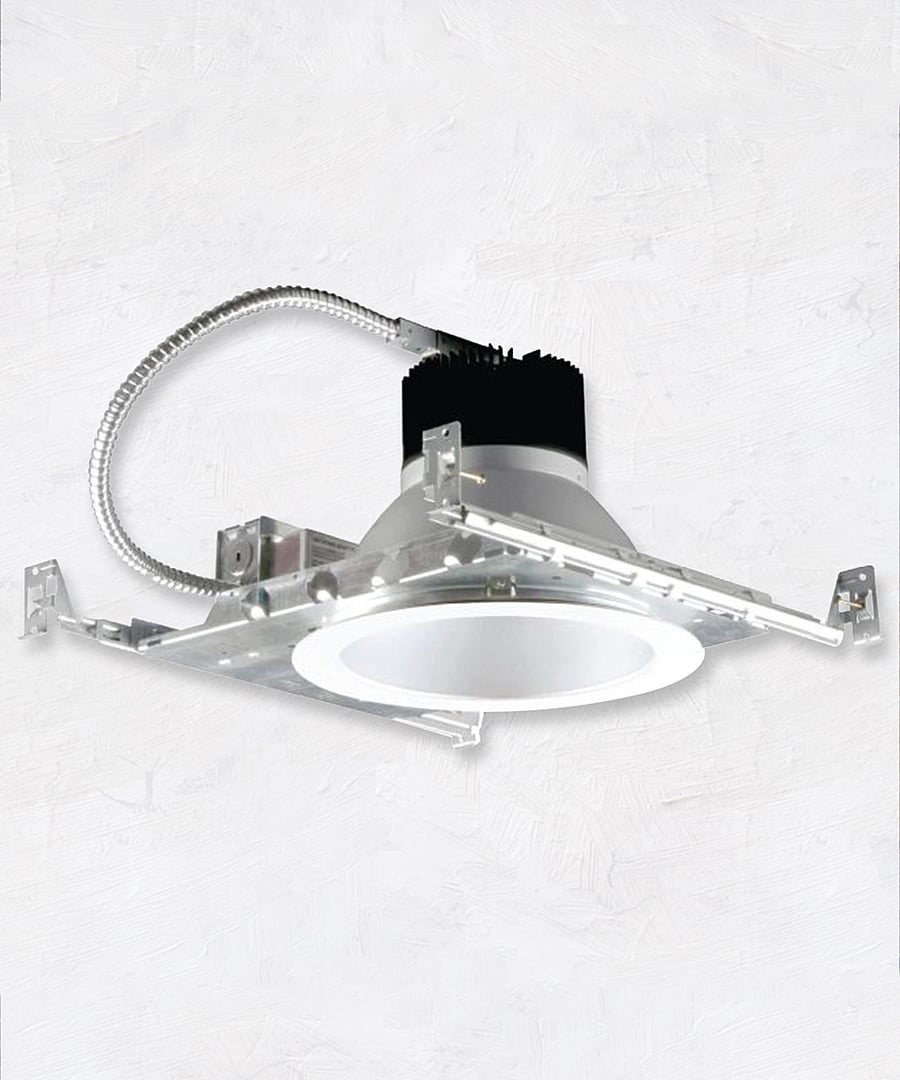

Alcon Lighting 14086-8 Lumino Commercial LED 8 Inch New Construction Recessed Direct Down Light
$199.95
SKU
14086-8
In stock
Lead Time
Built to order: 1-2 Weeks
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
Other Products You Might Like
Product information
Overview
The Lumino Commercial LED Recessed Direct Down Light is designed to maximize heat rejection in an open air environment. The Lumino is designed for new construction installations for medium to high ceilings in commercial, institutional, and architectural spaces.
Construction: Integral cast-aluminum, heat sink design
Non-IC rated housing must be kept 3" from insulation
Mounting: Suitable for New Construction Installations Only
(2) 24" Adjustable Hanger Bar w/ 90° Repositioning Included
Earthquake Structural Cable Compatible
Junction Box: 16 gauge pre-wired galvanized steel
64 cubic-inch for maximum (8) #12 AWG wires
Equipped with safety standard die-cast aluminum fitting for flex-conduit
Reflector: Airtight to restrict airflow from room into plenums in compliance to the WSEC (Washington State Energy Code)
Listings: ETL/cETL listed to UL1598 and UL8750
Suitable for dry, damp, and wet locations
Meets CA Title 24 Requirements and other standards restricting the use of Medium Base or Bi-Pin Sockets
Caution: Use of surge protectors recommended on the power entering LED Housings.
Surge damage is not covered by warranty. (+1KV)
Remote Emergency Option: 90 minute emergency mode when AC power fails
Remote test switch, plate cover, and junction box included
Generator Transfer Device Option: Switches the driver to auxiliary generator power during loss of normal AC power (Recommended for applications requiring individual circuit switching)
Construction: Integral cast-aluminum, heat sink design
Non-IC rated housing must be kept 3" from insulation
Mounting: Suitable for New Construction Installations Only
(2) 24" Adjustable Hanger Bar w/ 90° Repositioning Included
Earthquake Structural Cable Compatible
Junction Box: 16 gauge pre-wired galvanized steel
64 cubic-inch for maximum (8) #12 AWG wires
Equipped with safety standard die-cast aluminum fitting for flex-conduit
Reflector: Airtight to restrict airflow from room into plenums in compliance to the WSEC (Washington State Energy Code)
Listings: ETL/cETL listed to UL1598 and UL8750
Suitable for dry, damp, and wet locations
Meets CA Title 24 Requirements and other standards restricting the use of Medium Base or Bi-Pin Sockets
Caution: Use of surge protectors recommended on the power entering LED Housings.
Surge damage is not covered by warranty. (+1KV)
Remote Emergency Option: 90 minute emergency mode when AC power fails
Remote test switch, plate cover, and junction box included
Generator Transfer Device Option: Switches the driver to auxiliary generator power during loss of normal AC power (Recommended for applications requiring individual circuit switching)
Specifications
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 14086-8 |
| Return Policy | Assembled to Order. A 50% Restocking Fee May Apply. |
| Regulations | CETL listed, cUL, Assembled in the USA |
| Voltage | 120-277V |
| Color Temperature | 4000K Cool White |
| Configuration | Complete Kit |
| Housing Size | 4 Inch |
| Features | Emergency Backup Battery |
| Mount Type | Recessed Flanged |
| Width | 9.25" |
| Length | 12.75" |
| Diameter | 8.75" |
| Lumen Output | 600 - 1199 Lumens, 1200 - 2199 Lumens |
| Lumen Output Minimum | 1000 Lumens |
| Lumen Output Max | 2200 Lumens |
| Wattage | 10 Watts, 18 Watts, 28 Watts |
