Model 12503-S

Antimicrobial Surface-Mounted Linear Capsule LED Ceiling Light

Name: Antimicrobial Surface-Mounted Linear Capsule LED Ceiling Light
Brand: Alcon Lighting
SKU: 12503-S
Price: 649.95 USD
Availability: InStock

By Alcon Lighting

$649.95

Built to order

, availble to ship in fall 2025

Customize

5W Emergency Battery + $150.00

Daylight Dimming Sensor + $125.00

Occupancy Sensor with Daylight Harvesting + $100.00

Bodine Generator Transfer Device + $250.00

Select All

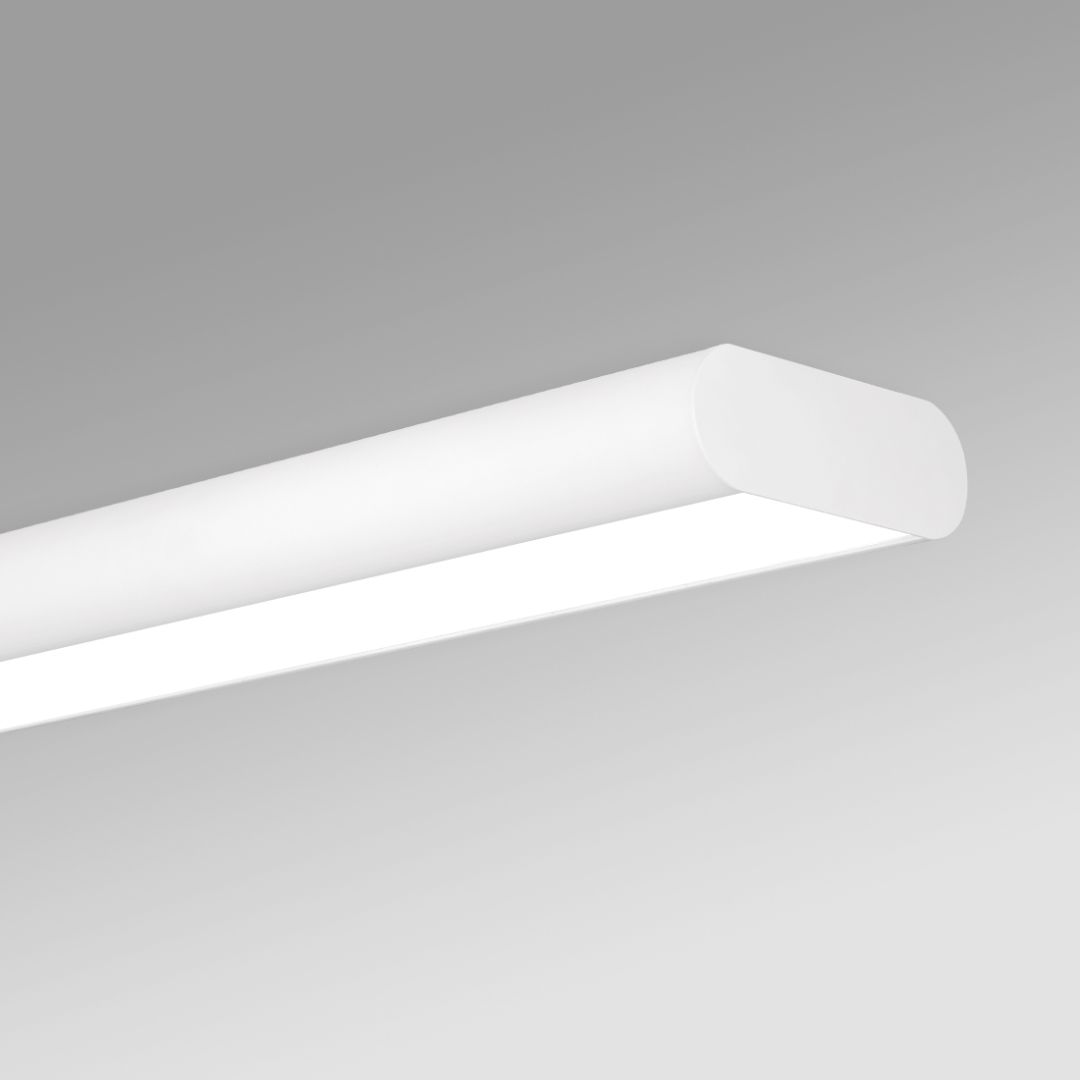

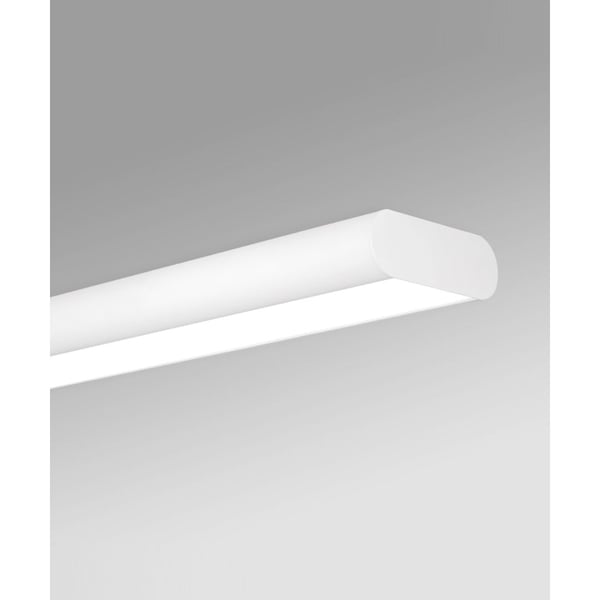

This surface-mounted capsule LED light provides durable, high-performance lighting in healthcare and institutional applications. The LED ceiling light, built from 22-gauge cold-rolled steel, has a frosted acrylic flat or 1/2" drop lens for uniform, glare-free downlighting. A white antimicrobial finish helps mitigate infection risks in exam rooms and medical facilities by preventing bacterial growth on exposed painted surfaces. Available with 0-10V, TRIAC, ELV, bi-level or tri-level step dimming, or advanced Bluetooth Mesh-enabled tunable white or RGBW color-changing controls.

Manufacturer

Alcon Lighting
Model

12503-S
Lead Time

Availble to Ship in Fall 2025
Return Policy

Built to order. Restocking fees apply.
Qualifications

cULus, Assembled in USA (ARRA)
Features

Occupancy Sensor, Daylight Sensor, Emergency Backup Battery, Antimicrobial Coating, 0-10V 5-Wire dimming is standard. Other options available for an additional charge.
Wattage

36 Watts, 54 Watts, 81 Watts, 108 Watts, 162 Watts
Voltage

120-277V
Finish

White
CCT

2700K @ 90+ CRI and 3000K, 3500K, 4000K and 5000K @ 80+ CRI are standard. 2000K-6500K tunable white and RGBW are available for an additional charge.
CRI

80+
Mounting

Surface
Light Direction

Direct Downlight
Shape

Linear
Wattage per ft

108 W/ft, 162 W/ft, 36 W/ft, 54 W/ft, 81 W/ft
Length

4 ft., 8 ft.
