Alcon 12500-40-R Linear Recessed Antimicrobial LED Light
For specification sheet options that don’t appear as selections below, please call (877) 733-5236.
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
- Specification Sheet
- Drywall Installation Instructions
- Screw Slot Installation Instructions
- T-Bar Installation Instructions
- Spackle Flange Installation Instructions
- 90° Installation Instructions
- Emergency LED Driver Specifications
- Vive by Lutron™ - Specification Sheet
- Vive by Lutron™ - Brochure
- IES Files
|Return Policy||Assembled to Order. Non-Refundable.|
|Regulations||UL Damp, cULus, DLC Listed, Assembled in the USA|
|Color Temperature||2700K @ 90+ CRI and 3000K, 3500K, 4000K and 5000K @ 80+ CRI are standard. 2000K-6500K tunable white and RGBW are available for an additional charge.|
|Housing Size||4 Inch|
|Features||0-10V 5-Wire dimming is standard. Other options available for an additional charge., Antimicrobial Finish, Damp-Location Rated, Daylight Sensor, Emergency Backup Battery, Fully Enclosed Fixture, Occupancy Sensor|
|Mount Type||Recessed Flanged, Recessed Trimless|
|Product Type||Direct Downlight|
|Length||2 ft., 3 ft., 4 ft., 6 ft., 8 ft.|
|Lumen Output||100-2,499 Lumens, 2,500-4,900 Lumens, 5,000-9,999 Lumens, 10,000-19,999 Lumens|

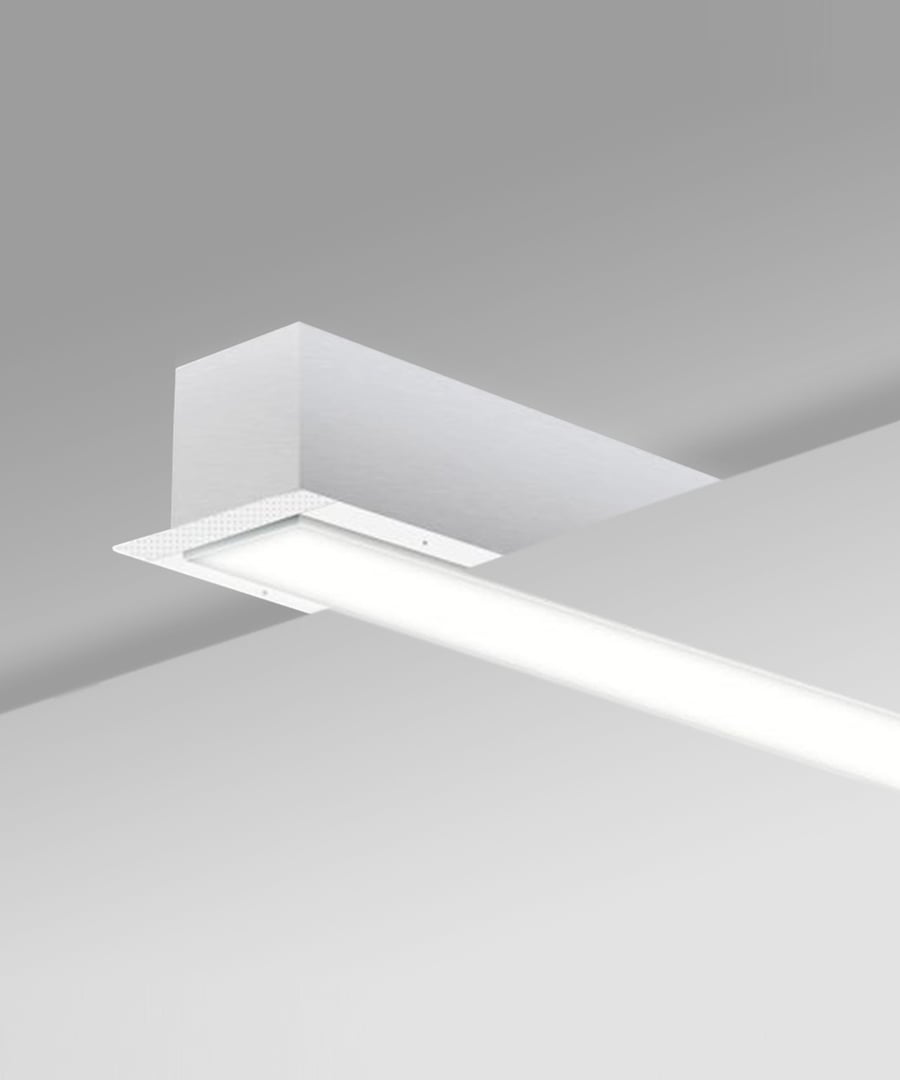

The four-inch aperture architectural and specification-grade, antimicrobial light provides direct illumination for healthcare applications, such as doctors’ offices. Available in standard lengths (2', 3', 4’, 6' and 8’) with the ability to tandem mount the product for a continuous run and equipped with both female and male quick connect harnesses, the downlight combines power, style and versatility. Die-formed and welded with 22- gauge cold rolled steel with a snap-in, frosted acrylic glare-free lens for better lighting distribution, this product is ideal for hospitals, clinics and medical lighting.
