Model 12309

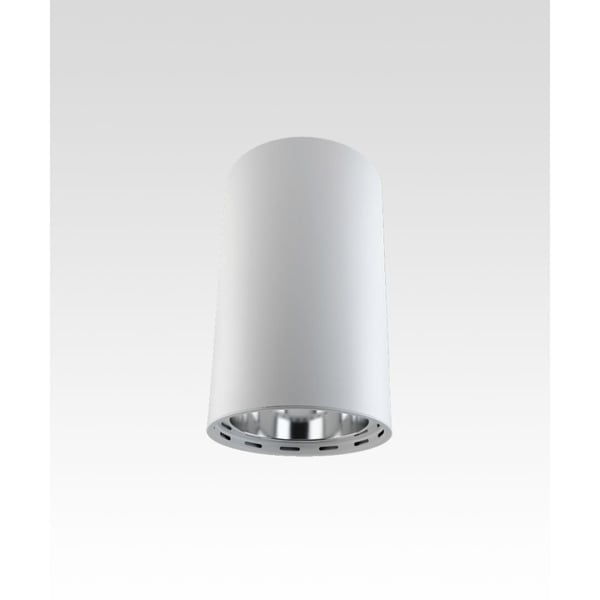

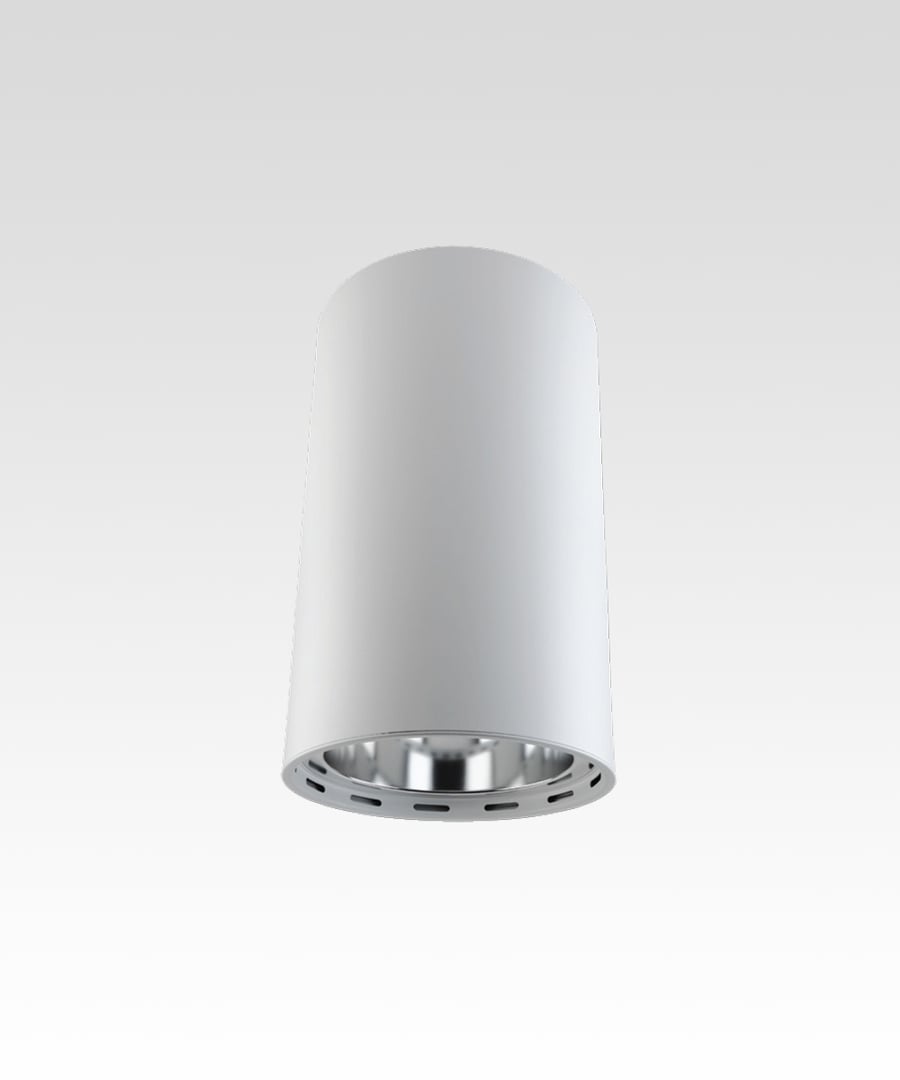

Open LED Architectural Cylinder

By Alcon Lighting
$499.95

Built to order

, ships-in: 4-6 weeks
Spec Grade UL ETL Damp Location Buy American Act (BAA) Emergency Backup Battery
loader
Loading...
Designed for architectural spaces, this fixture delivers soft, glare-free illumination with a 70° medium beam angle and a precision-spun reflector. The Specular Clear finish offers crisp, even light without streaks or hotspots, while the Soft Glow option is ideal for offices or spaces needing diffused lighting. Suitable for lobbies, retail, hospitality, and commercial interiors, it’s constructed from .064" thick spun aluminum with an integrated heat sink. It supports surface, wall, or pendant mounting, with stem or cable options, a standard Ø5.00" canopy or larger Ø12.75"/Ø13.25", and a 45° swivel canopy for sloped ceilings. The pendant includes a 3/8" IP x 12" rigid stem or 72" aircraft cable. Available in 3000–7000 lumens, 2700K–4000K or Dim-To-Warm (1800K–3000K), 80+ or 90+ CRI, 120V–277V input, and 0–10V, TRIAC, or Dim-To-Dark dimming. ETL certified, rated for damp and covered wet locations.
  • Manufacturer
    Alcon Lighting
  • Model
    12309
  • Lumen output
    3000 lm, 4000 lm, 5000 lm, 6000 lm, 7000 lm
  • Lead Time
    Ships-in: 4-6 Weeks
  • Qualifications
    Spec Grade, UL, ETL, Damp Location, Buy American Act (BAA), LM79 Tested, LM80 Tested
  • Features
    Emergency Backup Battery
  • Dimming
    0-10V, TRIAC
  • Voltage
    120-277V, 120V, 277V
  • Finish
    White, Black, Silver, Bronze
  • CCT
    2700K, 3000K, 3500K, 4000K, Warm Dimming
  • CRI
    90+, 80+
  • Mounting
    Pendant, Surface, Wall
  • Light Direction
    Direct Downlight
  • Shape
    Cylinder, Dome
  • Beam Spread
    70°
