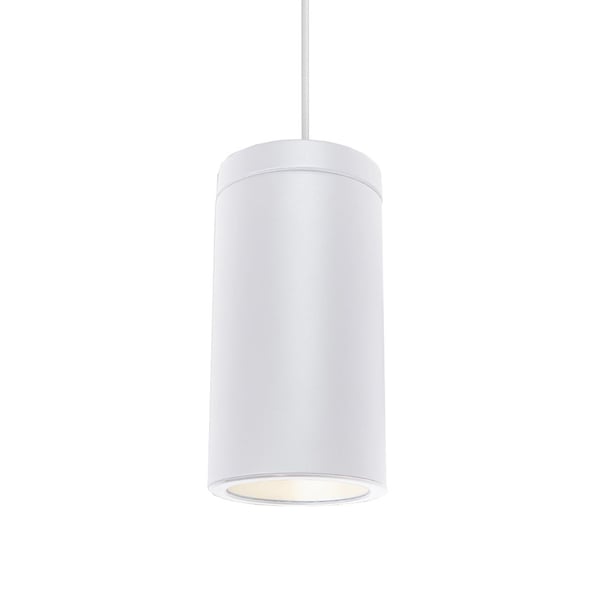

Alcon Lighting 12306 Silo Architectural Ceramic LED 6 Inch Cylinder Direct Downlight Fixture
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
The specification grade Silo Architectural Ceramic LED 6 Inch Cylinder Direct Downlight Fixture delivers efficient Cree True White® or Comfort Dim® color temperature technology to commercial, hospitality and residential interior lighting applications. Our modern LED Cylinder Downlights provide excellent color rendering for versatile environments.
FEATURES
Dimensions: H 14-1/2” x Dia. 7-5/8“
Cylinder Cap Construction:
High quality 0.040” steel cap with universal slots to allow for direct mounting to J-Box for surface mount. Incorporates all thread in the center for the installation of a cable or pendant rod kit for the corresponding mounting method. Three screws on the bottom of cap secure cylinder body to cylinder cap. (Adjustable with flathead screw driver).
Cylinder Body Construction:
0.040” steel cylindrical body with three keyhole slots allowing body to be installed to cylinder cap. Spring brackets accept torsion wing trim springs. Four butterfly clips also accommodated for spring-less trims.
Mounting: Cable mount includes canopy, field cuttable 3-wire cable and cylinder. Rod mount includes canopy and rod consisting of 3-12” pieces and 2-24” pieces of internally threaded rod and cylinder. Surface mount and wall mount include hardware to mount directly to J-box.
Socket / Quick Connector: Socket is free floating and installs to eyeball, gimbal ring and new trims equipped with socket brackets. Protective cap included to protect socket interior during ceiling painting.
Input Voltage: 120V or 277V
Color Temperature: 2700K, 3000K, 3500K, 4000K, or Comfort Dim.
Comfort Dim tunes color temperature from a bright 2700K, to a romantic and comfortable 1800K on a gradual, even curve. Comfort Dim is available for up to 1250 lumens.
Beam Spread: 60°
CRI: 90+
Warranty: 5 Years Carefree for Parts & Components (Labor Not Included)
Listings: cULus Listed for damp locations, cULus Listed for wet locations (Wall Mount Only)
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 12306 |
| Return Policy | Assembled to Order. A 30% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | cUL Listed, cUL Damp, cUL Wet, Assembled in the USA |
| Voltage | 120-277V, 120V, 277V |

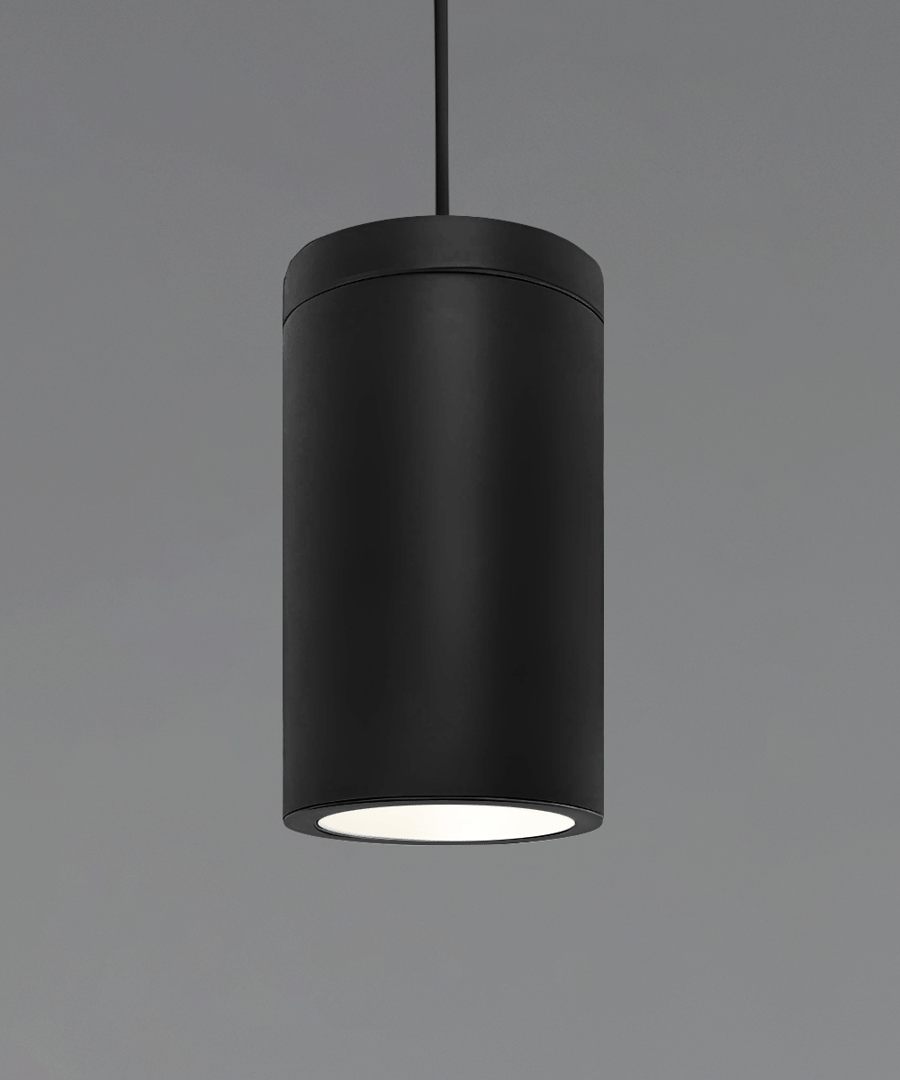

| Finish | White, Black |
| Color Temperature | 2700K Residential Warm, 3000K Warm White, 3500K Soft White, 4000K Cool White |
| CRI | 90+ |
| Housing Size | 6 Inch |
| Features | 0-10V Dimming, Triac Dimming, Damp Location Rated, Wet Location Rated, Tunable White |
| Mount Type | Pendant, Surface, Wall |
| Shape | Cylinder |
| Product Type | Direct Downlight |
| Diameter | 7-5/8" |
| Lumen Output | 600 - 1199 Lumens, 1200 - 2199 Lumens, 2200 - 3499 Lumens, 3500 - 4999 Lumens |
| Lumen Output Minimum | 850 Lumens |
| Lumen Output Max | 4000 Lumens |
| Wattage | 9 Watts, 13 Watts, 21 Watts, 31 Watts, 41 Watts |
| Beam Spread | 60° |
