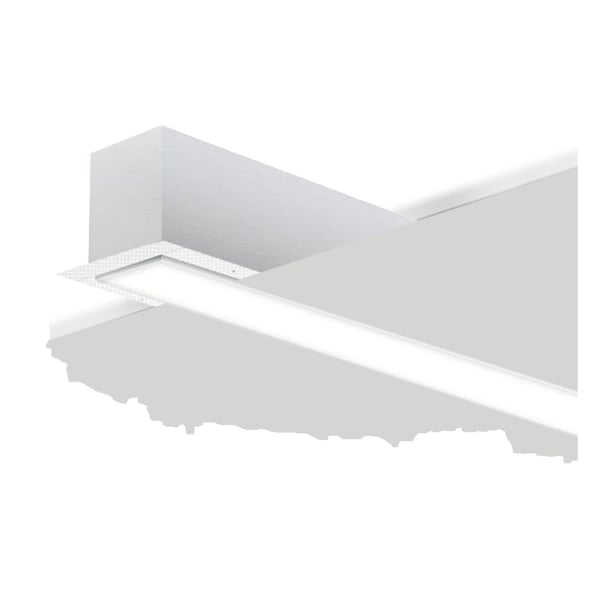

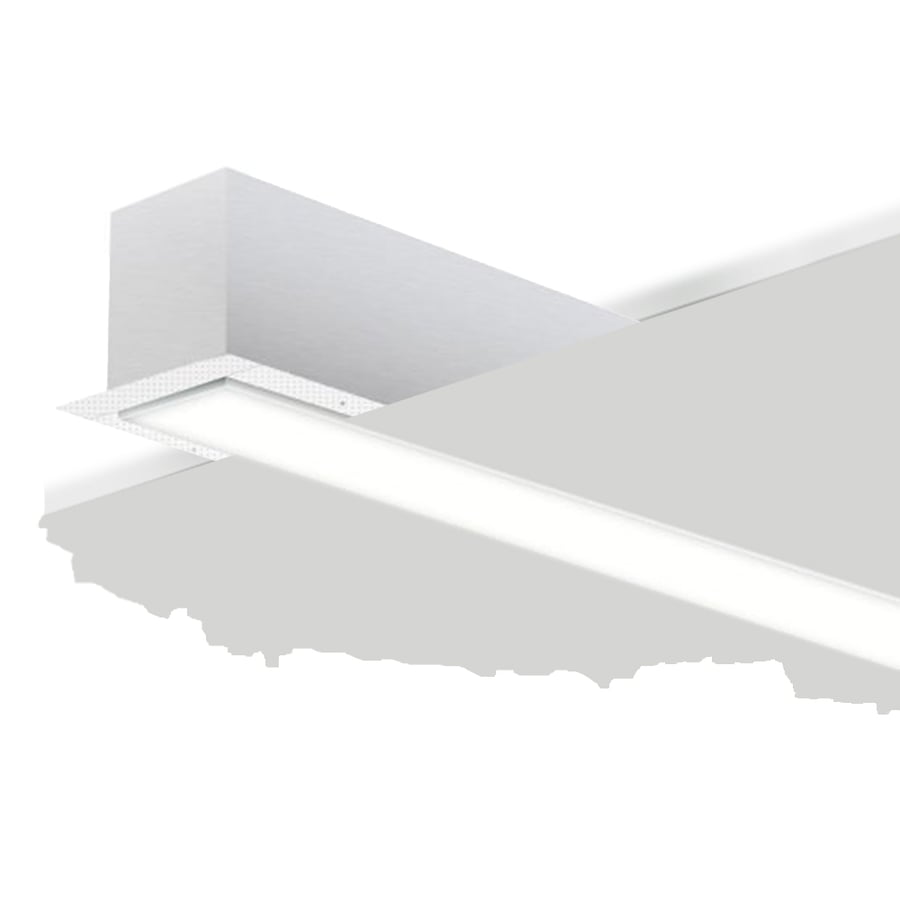

Alcon 12200-4-R RFT LED Linear Recessed Mount Light
by Alcon Lighting
Model 12200-4-R
Discontinued
Downloads
- Specification Sheet
- Engineer Specifications and Dimensions
- Installation Guide
- Installation Instructions (Flanged Flush)
- Installation Instructions (Flanged)
- Installation Instructions (Recessed with 1/2" Recessed Flanged)
- Installation Instructions (T-Bar)
- Photometric Information
- IES Information
- 0-10V Wiring Instructions
Details
Description
The Alcon Lighting RFT Architectural LED Recessed Linear Lighting fixtures bring clean lines and clear light to commercial LED or residential office lighting interiors. Our sleek, stylish fixtures offer highly effective and efficient lighting solutions for hotels, offices, retail outlets, restaurants, and more. 4000K is standard color temperature, 3500K and 5000K are available.
Manufacturer
Alcon Lighting
Model
12200-4-R
Lead Time
Ships in: 3-7 Business Days
Return Policy
Built to order. Restocking fees may apply.
Qualifications
UL, ETL, DLC, Assembled in USA (ARRA)
Features
Daylight Sensor, Emergency Backup Battery
Lumens per foot
2200 - 3499 Lumens
Lumen Output Max
3400 Lumens
Wattage
30 Watts
Wattage
30 Watts (2x15W)
Voltage
120-277V
Finish
White
Light Color
3500K, 4000K, 5000K
CRI
80+
Mounting
Recessed Trim Flange, Recessed Trimless (Drywall)
Width
4 inch
Length
24"
Length
2 feet, 4 feet, 8 feet
