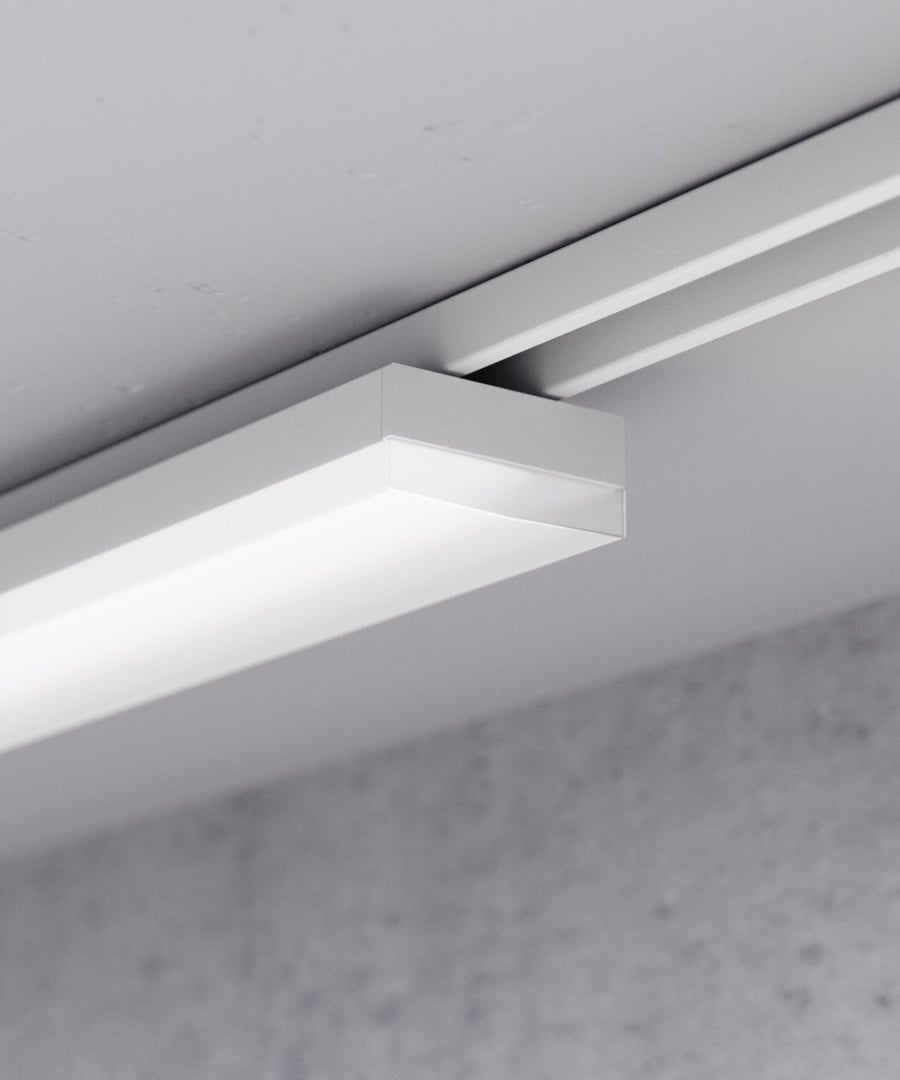

Alcon Lighting's architectural linear track rail light delivers high-performance illumination for retail, commercial and industrial environments using trunking and track rail systems. Designed for supermarkets, grocery stores, retail shops, showrooms, warehouses and distribution facilities, the slim linear fixture installs tool-free onto compatible track rails, simplifying installation and future reconfiguration. Selectable wattage and color temperature settings allow lighting designers to tailor performance for evolving merchandising layouts and operational needs, while delivering up to 8,500 lumens with a wide 120° distribution for uniform ambient illumination. Lightweight construction, long service life and energy-efficient performance make the 12172 ideal for continuous-row and trunking rail lighting applications.
Model
12172
Lead Time
Ships in: 3-7 Business Days
Return Policy
Built to order. Restocking fees apply.
Track Style
H-Style
Qualifications
Spec Grade, ETL
Features
Color Temperature Selectable Switch, Wattage Selectable Switch, Indoor Only
Dimming
Non-Dimmable
Wattage
Selectable Switch: 35/40/45/50W
Voltage
120-277V
Finish
White
CCT
3000K, 4000K, 5000K
CRI
80+
Mounting
Surface
Light Direction
Direct Downlight
Shape
Linear
Height
1.08"
Length
4'
Beam Spread
120°
Lumens per ft
2139 lm/ft
Wattage per ft
8.75 - 12.5 W/ft
Note:
Compatible with Single and Double circuit tracks. Track not included.
