Alcon Lighting 12100-10-LR Shallow Continuum 10 Architectural LED Trimless Linear Low Profile Recessed Mount Direct Down Light Fixture
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.

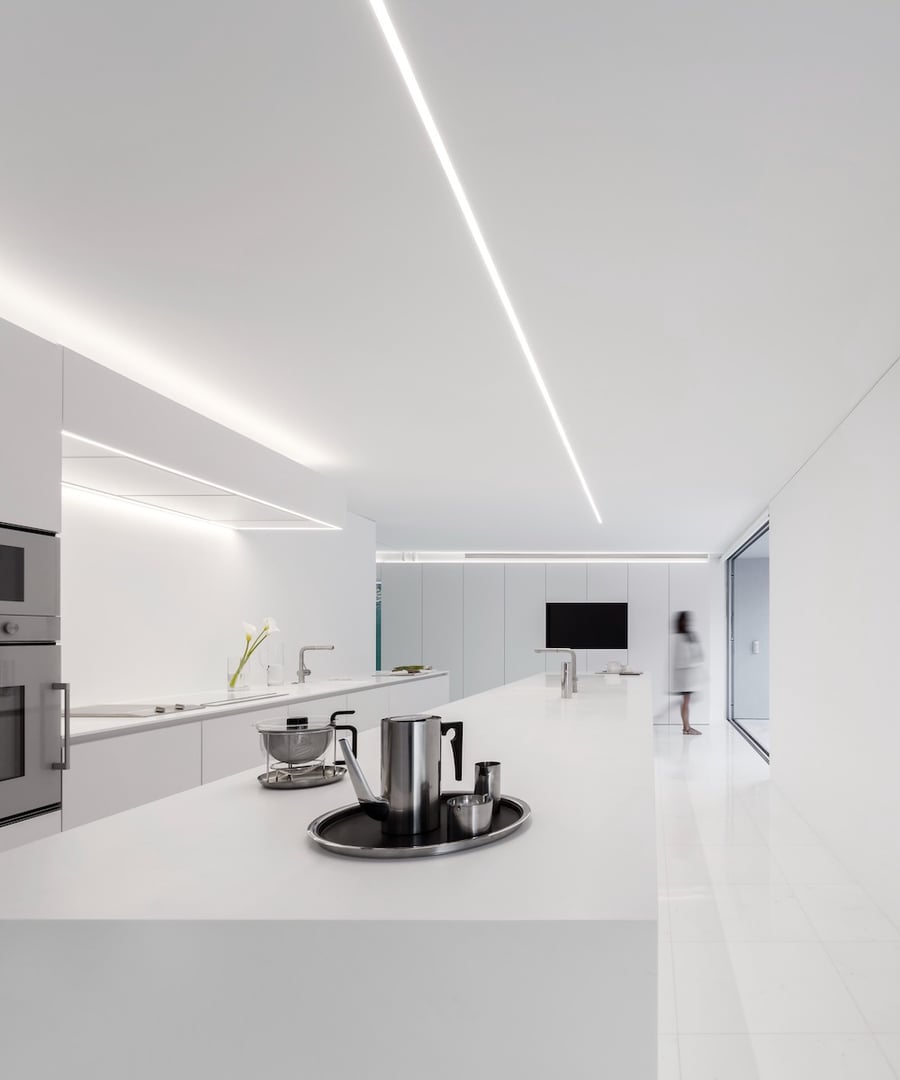

The specification grade Shallow Continuum 10 Architectural LED Trimless Linear Low Profile Recessed Lighting delivers continuous clean lines and clear light to commercial, hospitality and residential interior lighting applications. Our modern, slim profiles and stylish designs offer excellent illumination, exceptional performance and versatility in offices, classrooms, conference rooms, museums, retail outlets, hotels, restaurants, and more. The integrated LED recessed Shallow Continuum features a customizable design, and is available in standard lengths of 2', 3', 4’, 6', and 8.’
Construction: Durable, Military Grade Aluminum Field Cuttable
Installs Within Drywall Depth
Can Be Installed in Any Drywall Thickness
LED Driver: Remote Transformer is Provided, Home Run Required at Every 16'
Dimming: ELV Electronic Low Voltage (120V) 3-wire, 100-1% included.
TRIAC (120V) 2-wire and 0-10V (120-277V) 5-wire Options Available (Consult Factory).
Beam Angle: 120°
Lens: Glare Free Snap In Frosted Acrylic for Even Distribution
Voltage: 24V DC Constant Voltage
Lumens: 1000 lms/FT
Life: 50,000 Hours
Warranty: 5 Years
Listings: cUL Listed, Title 24 JA8 Certified
Formerly Beam #14005
|Additional options||ELV Dimming, 0-10V Dimming|
|Return Policy||Assembled to Order. Non-Refundable.|
|Regulations||cUL, CA Title-24 , Assembled in the USA|
|Color Temperature||2700K Warm White, 3000K Warm White, 4000K Cool White, 5000K Day Light, 3500K Soft White|
|Housing Size||1 Inch|
|Features||Damp Location Rated, Wet Location Rated|
|Mount Type||Recessed Trimless|
|Product Type||Direct Downlight|
|Lumen Output||1200 - 2199 Lumens, 2200 - 3499 Lumens, 3500 - 4999 Lumens, 5000 - 7499 Lumens, 7500 - 8999 Lumens|
|Lumen Output Minimum||2000 Lumens|
|Lumen Output Max||8000 Lumens|
|Wattage||12, 18, 24, 36, 48 Watts|
