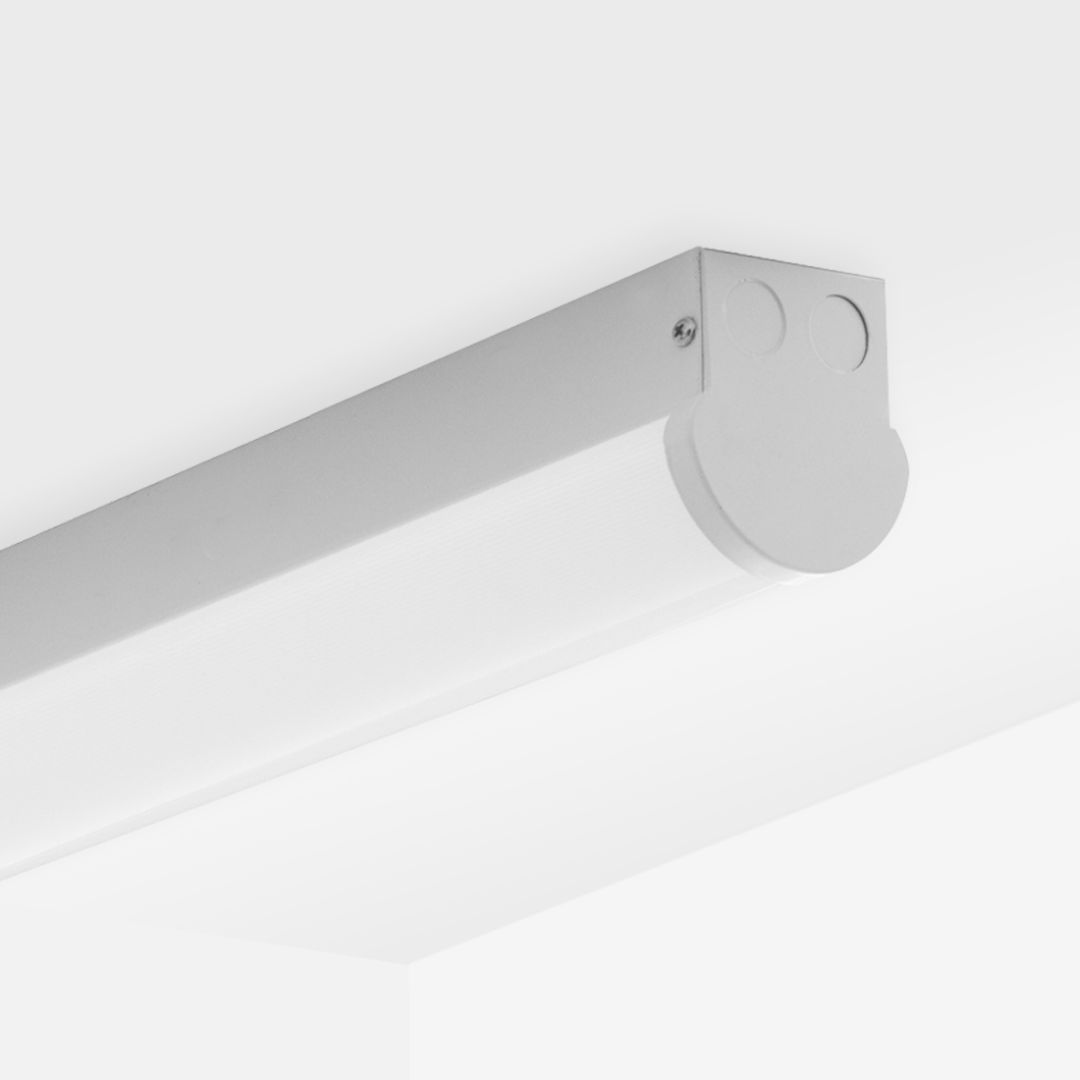

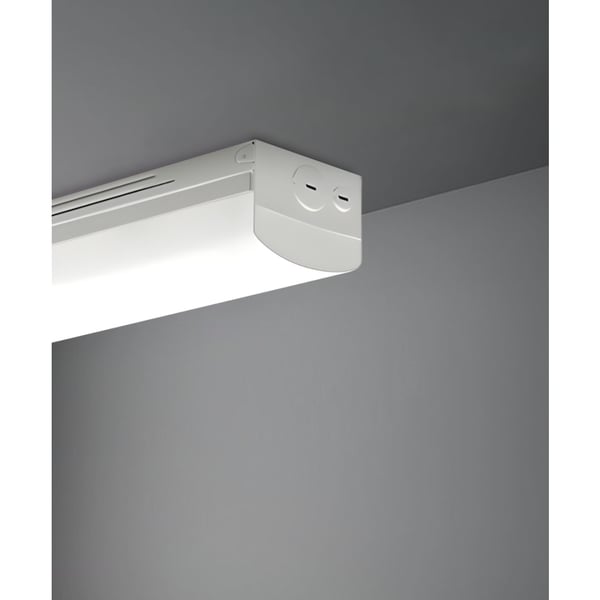

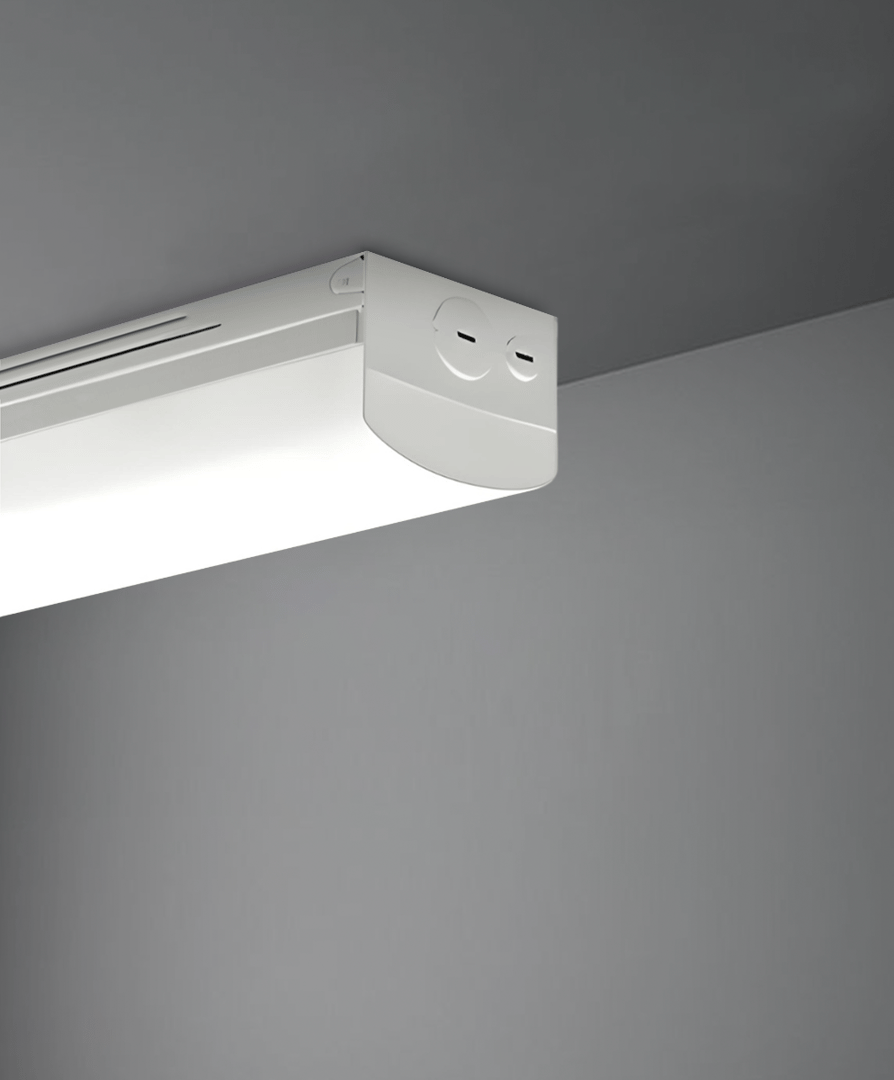

Alcon Lighting 11163 Chela Surface Mount Premium Architectural LED Linear Direct Down Light Strip
The Chela Premium Architectural LED Surface Mount Direct Light Strip features a compact design with efficient lighting that provides crisper brightness and more energy savings. The Chela Premium is ideal for indoor applications in industrial, commercial, institutional, or architectural installations.
Construction: Die-formed steel channel with knock-outs for versatile configuration and easy mounting
Corrosion Resistant
Finish: High-gloss baked white enamel
Lens: Frosted Acrylic Diffuser
Electrical: Meets Class 1 or Class 2 Circuit
Voltage: 120-277 (50/60 Hz)
Dimming: 0-10V 1~100%
CRI: 83+
Efficiency: 126 lm/W
Power Factor: +0.95
THD: Operating Temperature:-20°C (-4°F) - 50°C (122°F)
Life: 50,000 Hours (L80)
Warranty: 5 Years
Listings: UL/cUL Listed and Labeled
DLC Listed
Suitable for Damp Locations
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 11163 |
| Technology | LED |
| Regulations | cUL Listed, DLC Listed, Assembled in the USA |
| Voltage | 120V - 277V |
| Finish | White |
| Color Temperature | 3000K Warm White, 3500K Soft White, 4000K Cool White, 5000K Day Light |
| Features | 0-10V Dimming, Emergency Battery Backup, Damp Location Rated, Daylight Sensor, Occupancy Sensor |
| Mount Type | Surface |
| Shape | Linear |
| Product Type | Direct Downlight |
| Direction | Down |
| Length | 24" |
| Lumen Output Minimum | 2400 Lumens |
| Lumen Output Max | 4800 Lumens |
| Wattage | 19 Watts, 37 Watts |
