Alcon Lighting 14032 Aces Architectural LED Recessed Center Basket Ribbed Direct Light Troffer
NOTE: given the nature of built-to-order products, we cannot guarantee lead-times. Occasional back-order of components (i.e. LED drivers, diodes, and/or other electrical components) can sometimes lead to delays in assembly. Estimated ship dates are, by definition, not guaranteed.

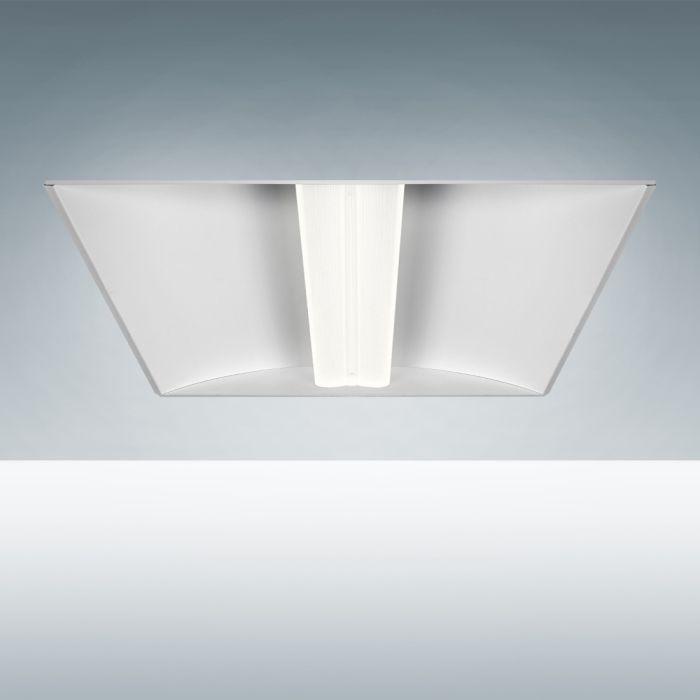

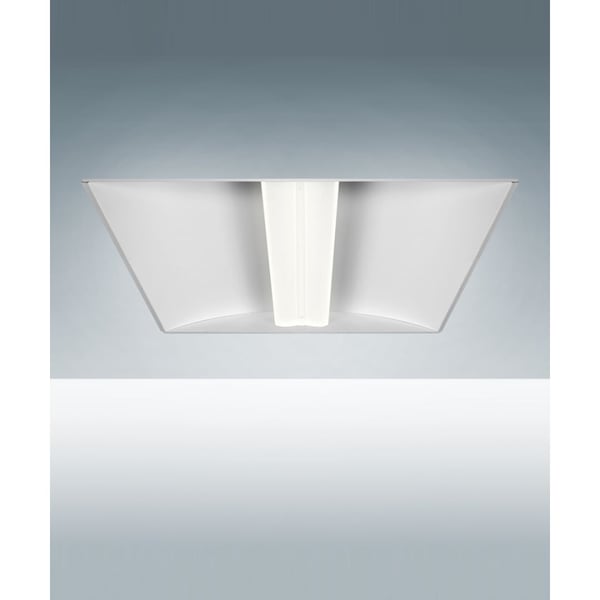

The Alcon Lighting Aces Architectural LED Center Basket Troffer provides soft ambient light with reduced shadows and glare combined with high performance. The Aces Series is excellent for recessed applications in commercial, industrial , and institutional buildings and is ideal for schools, hospitals, and offices.
AVAILABLE SIZES
2x2 | W 23.81” x L 24” x D 5.5”
2x4 | W 23.81” x L 48” x D 5.5”
FEATURES
Construction: Die Formed, Cold-Rolled, 20 Gauge Steel Corrosion Resistant Sloped Sides to Softly Reflect Light Back Downwards
Mounting: Recessed Mounted in Exposed T-bar Ceilings
Finish: High-Gloss Baked White Enamel
Lens: Ribbed Prism White Translucent Acrylic
Efficacy: 162 LPW
Life: L70 - 60,000 Hours
Ambient Operating Temperature: -22°F ~ 122°F
Efficiency: +85%
Power Factor: +0.9
Listing: Suitable for Damp Locations ARRA Compliant
Warranty: 5 Years Carefree for Parts & Components (Labor Not Included)
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 14032 |
| Return Policy | Assembled to Order. A 30% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | cUL Listed, Assembled in the USA, Buy American Act |
| Voltage | 120V - 277V |
| Finish | White |
| Color Temperature | 3000K Warm White, 3500K Soft White, 4000K Cool White, 5000K Day Light |
| CRI | 80+ |
| Features | Emergency Backup Battery , Damp Location Rated |
| Width | 23.81" |
| Projection | 5.5" |
| Length | 24" |
| Lumen Output | 2200 - 3499 Lumens, 3500 - 4999 Lumens |
| Lumen Output Minimum | 2264 Lumens |
| Lumen Output Max | 3456 Lumens |
| Wattage | 28 Watts, 36 Watts, 44 Watts |
