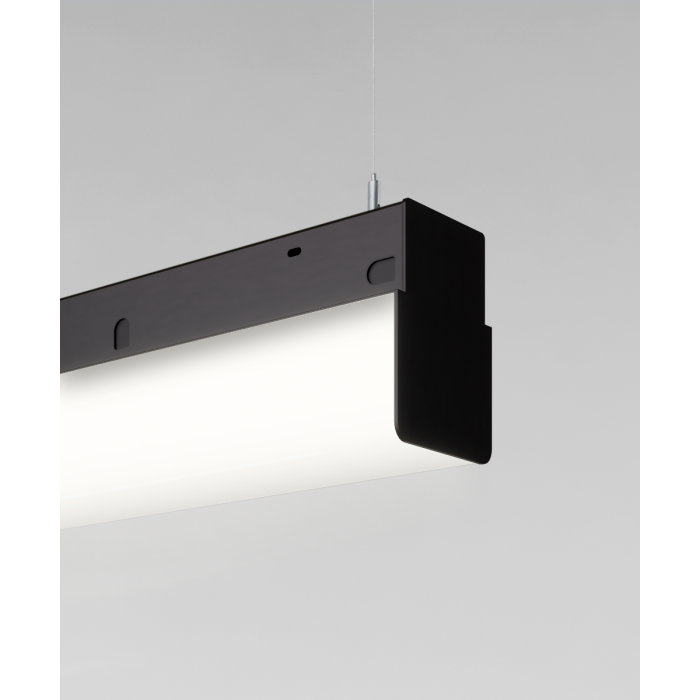

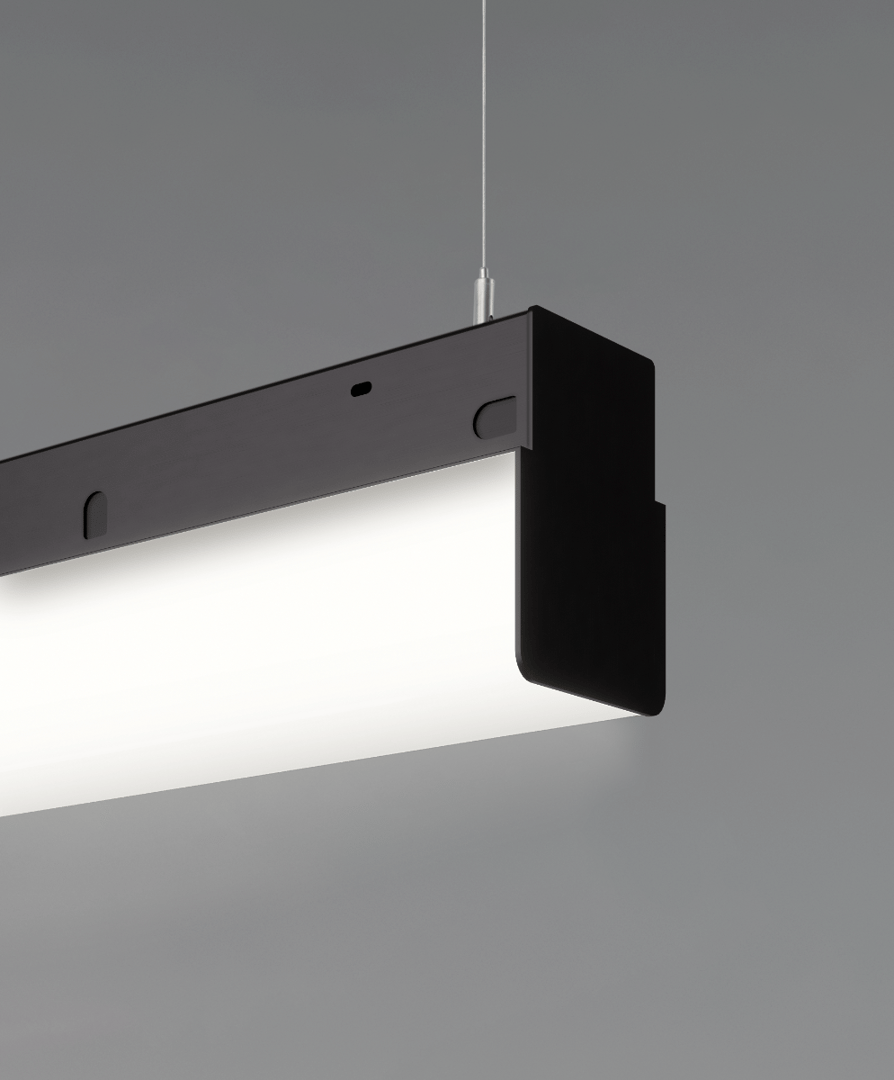

Alcon Lighting 12171 Block Architectural LED Linear Suspension Lighting Pendant Mount Direct Light Strip
NOTE: We cannot guarantee lead times for built to order products. Occasional backorder of components (i.e., LED drivers, diodes and/or other electrical components) may lead to assembly delays. Be assured, Alcon Lighting is 100 percent committed to meeting and/or exceeding lead time estimates.
The specification grade Alcon Lighting Block Commercial LED Linear Pendant Direct Down Light Strip delivers continuous clean lines and clear light to commercial, hospitality and residential interior lighting applications. Our modern, slim profiles and stylish linear chandelier designs offer excellent direct down lighting, exceptional performance and versatility in offices, classrooms, conference rooms, museums, retail outlets, hotels, restaurants, and more.
FEATURES
Construction: Die-Formed and Welded 22-Gauge Cold Rolled Steel Lens: Glare Free Snap In Frosted Acrylic for Even Distribution
Mounting: 48" Adjustable Aircraft Cable with Canopy is Standard
Voltage: 120-277V
CRI: 80+ is Standard (90+ is optional)
Dimming: 0-10V
Life: 50,000 Hours
Warranty: 5 Years Carefree for Parts & Components (Labor Not Included)
Listings: cETLus Listed, UL/cUL Listed, DLC Listed, Suitable for Damp Locations
See spec sheet or consult factory for Emergency Backup Battery and Sensor options.
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 12171 |
| Return Policy | Assembled to Order. A 50% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | cUL Listed, Assembled in the USA, Buy American Act |
| Voltage | 120-277V |
| Finish | White |
| Color Temperature | 3000K Warm White, 3500K Soft White, 4000K Cool White, 5000K Day Light |
| CRI | 80+ |
| Lens Opacity | Frosted |
| Features | 0-10V Dimming, Emergency Backup Battery , Damp Location Rated, Daylight Sensor, Occupancy Sensor |
| Mount Type | Pendant |
| Shape | Linear |
| Product Type | Direct Downlight |
| Width | 2.75" |
| Length | 24" |
| Lumen Output | 1200 - 2199 Lumens, 2200 - 3499 Lumens, 3500 - 4999 Lumens |
| Lumen Output Minimum | 1944 Lumens |
| Lumen Output Max | 3888 Lumens |
| Wattage | 18 Watts, 36 Watts |
