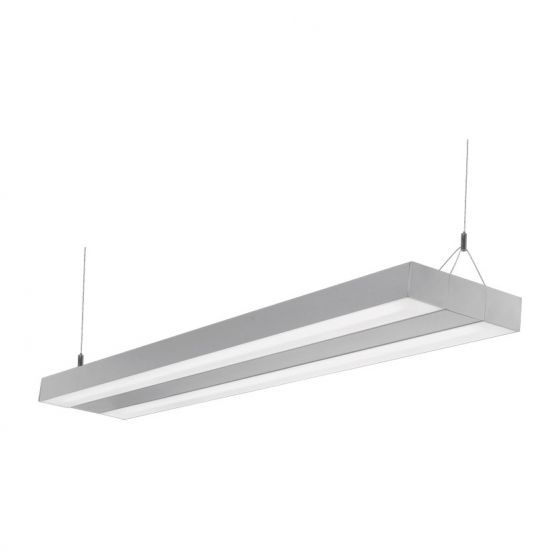

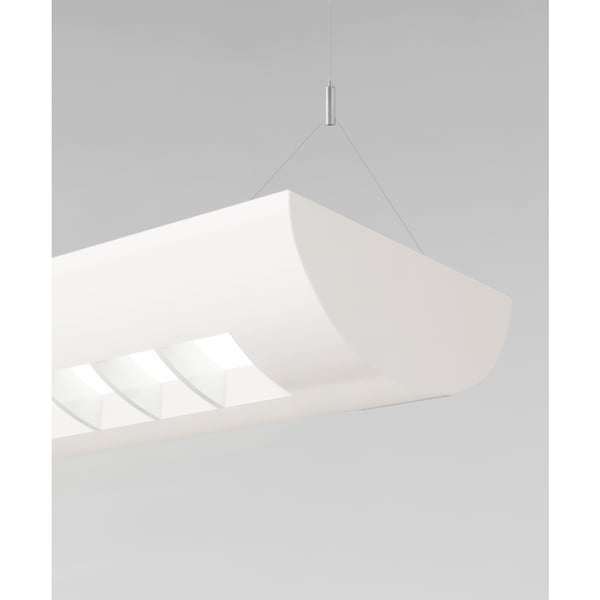

Alcon Lighting 12105 Delano Architectural LED Linear Pendant Lighting Direct/Indirect Fixture
NOTE: given the nature of built-to-order products, we cannot guarantee lead-times. Occasional back-order of components (i.e. LED drivers, diodes, and/or other electrical components) can sometimes lead to delays in assembly. Estimated ship dates are, by definition, not guaranteed.
The Delano Architectural LED Pendant Lighting Direct/Indirect Light Fixture delivers continuous clean lines and clear light to commercial, hospitality and residential interior lighting applications. Our modern, slim profiles and stylish linear chandelier designs offer excellent direct and indirect lighting and exceptional performance and versatility in offices, classrooms, conference rooms, museums, retail outlets, hotels, restaurants, and more. The integrated LED is available in standard lengths of 4', 8’, and 12’, and can be joined together in seamless runs of any length.
FEATURES
Construction: Die-Formed 20 Gauge Cold-Rolled Steel
(Flat End Steel Plate Standard Die-Cast Aluminum Decorative End Cap Optional)
Continuous Row: Full Ability to Tandem Mount for Continuous Run Application, Equipped with Male & Female Quick Connect Harnesses
Light Distribution: 13% Down / 87% Up
Reflector: Die-Formed, High-Reflective

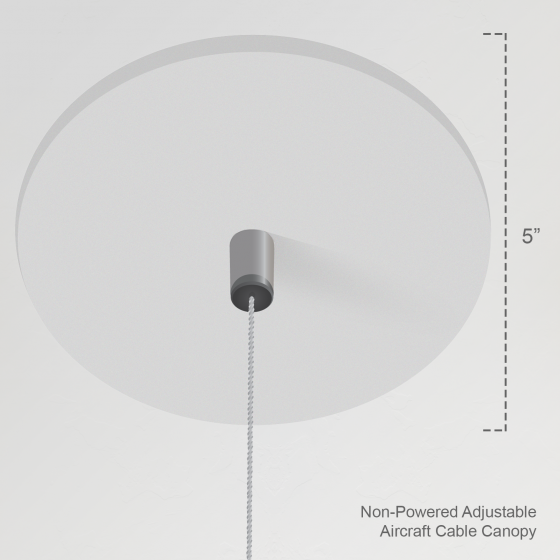

Mounting: 48" Adjustable Aircraft Cable
Lens: Semi-Specular Aluminum Louver
Electrical: Constant Current, Class 2
Voltage: 120-277V (347V and 480V Available for Canadian Projects, Consult Factory)
CRI: 80+ (90+ available, Consult Factory)
Power Factor: > .9
Life: 60,000 Hours L70
Operating Temperature: -22°F (-30°C) - 122°F (50°C)
Emergency Lumens: System Lumens x Emergency Wattage / System Wattage
Warranty: 5 Years Carefree for Parts & Components (Labor Not Included), 10 Year Option Available
Listings: UL Listed for Dry & Damp Location
| Manufacturer | Alcon Lighting |
|---|---|
| SKU | 12105 |
| Return Policy | Assembled to Order. A 50% Restocking Fee May Apply. |
| Technology | LED |
| Regulations | UL Listed, cUL Listed, Assembled in the USA, Buy American Act |
| Voltage | 120V - 277V |
| Color Temperature | 3000K Warm White, 3500K Soft White, 4000K Cool White, 5000K Day Light |
| Features | 0-10V Dimming, Emergency Battery Backup, Lutron Vive, Damp Location Rated, Daylight Sensor, Motion Sensor, Occupancy Sensor, Daylight Harvesting |
| Mount Type | Pendant |
| Shape | Linear |
| Product Type | Direct/Indirect |
| Direction | Up/Down |
| Width | 9" |
| Length | 48" |
| Lumen Output | 3500 - 4999 Lumens, 5000 - 7499 Lumens |
| Lumen Output Minimum | 3906 Lumens |
| Lumen Output Max | 5354 Lumens |
| Wattage | 60 Watts, 72 Watts, 81 Watts |
